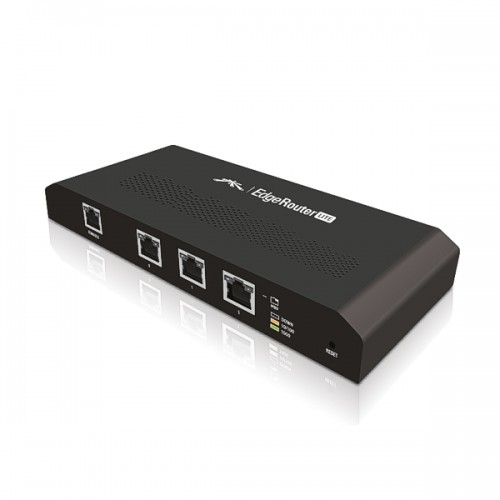

Ubiquiti ERLite-3 - Advanced 3-Port EdgeRouter (EdgeMAX Series)

Ubiquiti ERLite-3 - Advanced 3-Port EdgeRouter (EdgeMAX Series)

• Sophisticated Routing Features
• Advanced Security, Monitoring, and Management
• High-Performance Gigabit Ports

Introducing the EdgeRouter(TM) Lite from Ubiquiti Networks, part of the EdgeMAX(TM) series. Housed in a compact, fanless form factor, the EdgeRouter Lite operates quietly as it delivers the powerful routing, security, and management features you require to efficiently run your network.

Direct Traffic Flow

Interfaces

Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.

Routing

Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.

Secure Your Network

Firewall Policies

Organize the rules you apply in the order you specify.

Firewall Groups

Apply the policies to groups filtered by IP address, network address, or port number.

NAT Rules

The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.

Manage Your Network

DHCP Server

Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.

Monitoring Tools

Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.

User Accounts

Manage access to the EdgeRouter Lite using unique administrator and operator accounts.

With these capabilities and more, the EdgeRouter Lite provides the centralized control you want to optimize the performance and reliability of your network.

Hardware Specifications

• Dimensions: 197.52 x 91 x 28 mm
• Weight: 289.2 g
• Power input: 12 V DC, 1 A power adapter (included), 9 to 24 V (supported voltage range)
• Button: Reset
• Processor: Dual-core 500 MHz, MIPS64 with hardware acceleration for packet processing
• System memory: 512 MB DDR2 RAM, onboard Flash storage: 2 GB
• Certifications: CE, FCC, IC
• Wall-mount: Yes
• Operating temperature: -10°C to 45°C (14°F to 113°F)
• Operating humidity: 90% non-condensing
• Layer 3 forwarding performance
  • Packet size 64 bytes: 1,000,000 pps
  • Packet size 512 bytes or larger: 3 Gbps (line rate)
• LEDs per port
  • Serial console port: Power
  • Data ports: Speed/Link/Activity
• Networking interfaces
  • Serial console port: (1) RJ45 serial port
  • Data ports: (3) 10/100/1000 Ethernet ports

Software Specifications

• Interface/encapsulation
  • Ethernet
  • 802.1q VLAN
  • PPPoE
  • GRE
  • IP in IP
  • Bridging
  • Bonding (802.3ad)
• Addressing
  • Static IPv4/IPv6 addressing
  • DHCP/DHCPv6
• Routing
  • Static routes
  • OSPF/OSPFv3
  • RIP/RIPng
  • BGP (with IPv6 support)
  • IGMP proxy
• Security
  • ACL-based firewall
  • Zone-based firewall
  • NAT
• VPN
  • IPSec site-to-site and remote access
  • OpenVPN site-to-site and remote access
  • PPTP remote access
  • L2TP remote access
  • PPTP client
• Services
  • DHCP/DHCPv6 server
  • DHCP/DHCPv6 relay
  • Dynamic DNS
  • DNS forwarding
  • VRRP
  • RADIUS client
  • Web caching
• QoS
  • FIFO
  • Stochastic fairness queueing
  • Random early detection
  • Token bucket filter
  • Deficit round robin
  • Hierarchical token bucket
  • Ingress policing
• Management
  • Web UI
  • CLI (console, SSH, Telnet)
  • SNMP
  • NetFlow
  • LLDP
  • NTP
  • UBNT discovery protocol
  • Logging
