Mikrotik RouterBOARD CCR1016-12G Cloud Core Router

Mikrotik RouterBOARD CCR1016-12G Cloud Core Router

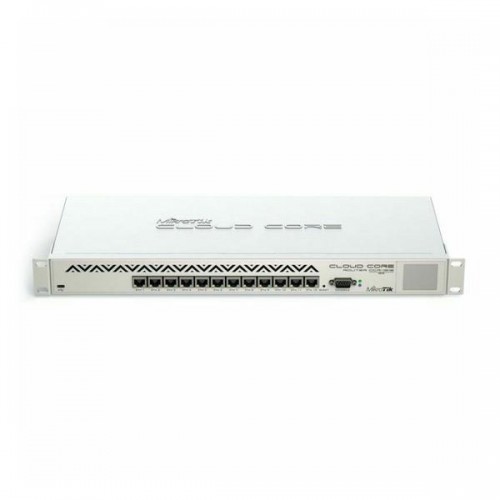

CCR1016-12G is an industrial grade router with cutting edge 16 core CPU. If your network requires to operate with millions of packets per second - Cloud Core Router is your best choice. The unit is equipped with 12 Gigabit Ethernet ports and an LCD display.

This version has onboard 2 GB of RAM and a microUSB type AB slot.

Features

• 16 core networking CPU, 1.2 GHz clock per core
• 12 Mbytes total on-chip cache
• State of the art TILE GX architecture
• 12x Gigabit ports, all directly connected to CPU
• 1U rackmount case
• Color touchscreen LCD display
• Up to 1.5 mpps throughput in regular mode
• Up to 17.8 mpps throughput in fastpath mode (wire speed)
• Up to 12 Gbps throughput with common RouterOS configurations

• CPU: Tilera Tile-Gx16 CPU (16 cores, 1.2 GHz per core)
• RAM: 2x SODIMM DDR3 slots, 2x 1 GB installed (no hardware or software max. limit)
• Ethernet: 12x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
• Expansion: microUSB type AB port
• Storage: 512 MB onboard NAND
• Serial port: RS232
• Extras: Reset switch; beeper; voltage, current and temperature monitoring; speed controlled fan
• Dimensions: 355 x 145 x 44 mm
• Temperature: Max ambient temperature 50°C (at) 1.2 GHz; 70°C (at) 1 GHz CPU core frequency
• OS: MikroTik RouterOS v6 (64 bit), Level 6 license
• Included:

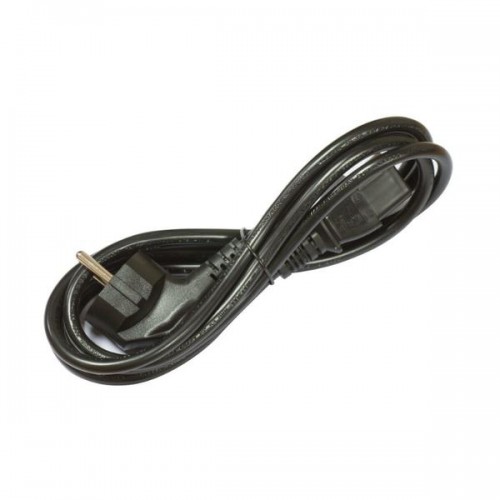

• CCR1016-12G: router in a 1U case with LCD, PSU, power cable, USB cable
