MikroTik SXTsq 5 - RBSXTsq5HPnD with 16 dBi, 5 GHz antenna, dual-chain 802.11an

MikroTik SXTsq 5 - RBSXTsq5HPnD with 16 dBi, 5 GHz antenna, dual-chain 802.11an

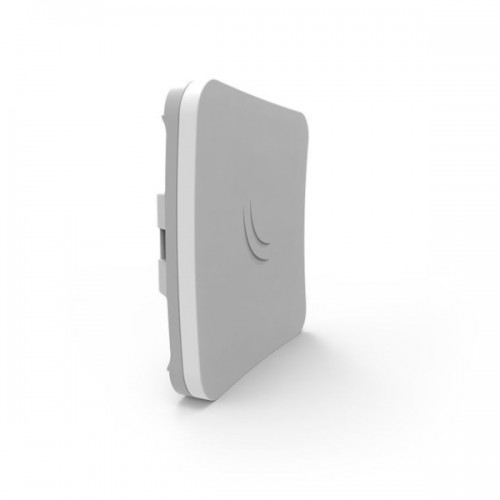

The SXTsq 5 (high power) is a compact and lightweight outdoor wireless
device with an integrated antenna, perfect for point-to-point links or
as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq 5 retains a 16 dBi antenna like the SXT 5, our previous model, yet the
antenna design has been improved and the physical size has been
dramatically reduced - the SXTsq is two times thinner. Higher TX power
allows to reach longer distances than SXTsq Lite 5.

The enclosure

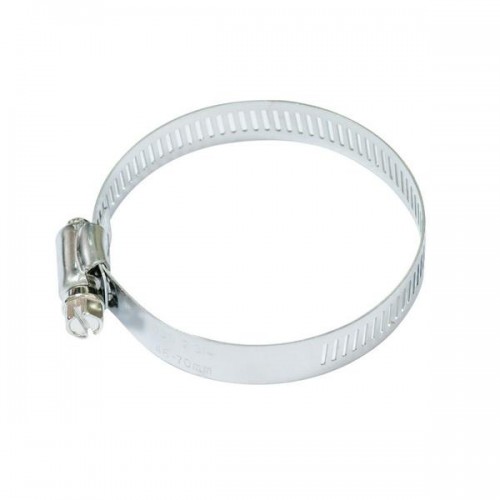

includes slots for directly attaching a hose clamp mount in three
different mounting places, with the option to be mounted on horizontal
railings. The device includes one 10/100 Mbit Ethernet port. There is
also an easily accessilble grounding connection to protect it against
lightning.

Included:

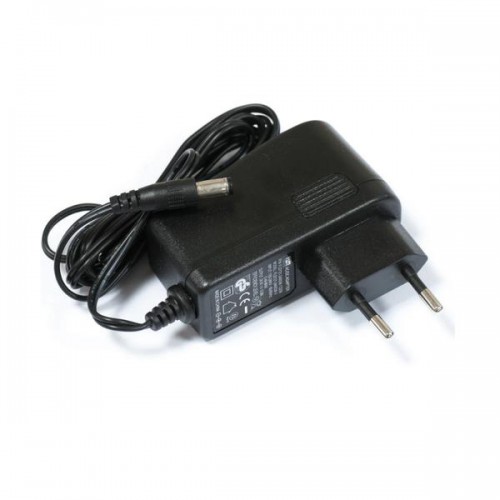

• 24 V, 0.38 A power adapter
• Metal ring

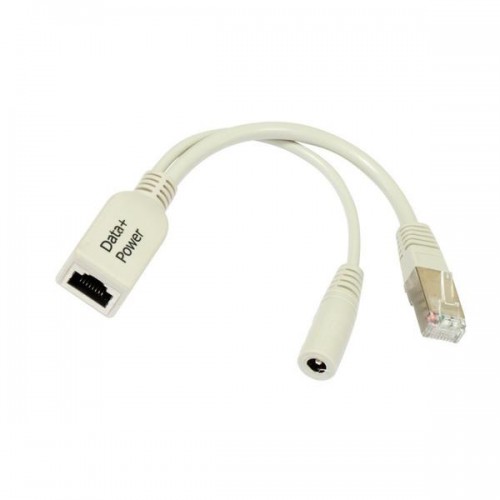

• PoE injector

• Product code RBSXTsq5HPnD
• CPU: AR9344
• CPU nominal frequency: 600 MHz
• CPU core count: 1
• Size of RAM: 64 MB
• Storage: 16 MB Flash
• 10/100 Ethernet ports: 1
• Wireless bands: 5 GHz radio
• Wireless regulations: Specific frequency range may be limited by country regulations
• Operating frequency: 5150 - 5875 MHz
• Protocols: 802.11a/n
• Chains: 2
• Antenna gain: 16 dBi
• Antenna beam width: 23°
• Wireless chip model: AR9344
• PoE in: yes
• Supported input voltage: 10 V - 28 V, passive PoE
• Dimensions: 129 x 129 x 34 mm; package: 255 x 180 x 45 mm
• Weight: unit: 295 g; package: 492 g
• Operating temperature: -40 to 70° C
• License level: 4
• Operating system: RouterOS
• Max. power consumption: 7 W
