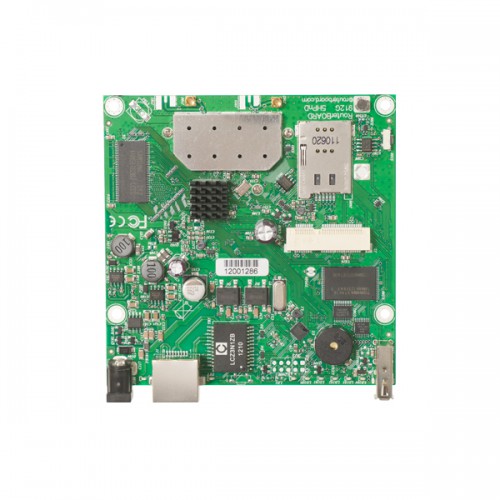

MikroTik RouterBOARD RB912UAG-5HPnD, wireless router

RB912UAG-5HPnD (Basebox 5)

The RB912 is a small wireless router with an integrated high-power wireless card and an additional miniPCIe slot for 802.11 wireless or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000 mW output power. It has built in 16 kV ESD protection on both the Ethernet and MMCX ports.

• Features: 1 Ethernet, 1 miniPCIe, USB, additional memory, Gigabit, high power, dual chain
• CPU: Atheros AR9342 600 MHz network processor
• Memory: 64 MB DDR2 onboard memory
• Data storage: onboard NAND memory chip
• Ethernet: (1) Gigabit port with Auto-MDI/X
• Wireless: Built-in 5 GHz AR9283 802.11a/n, (2) MMCX connectors
• Extras: Reset, beeper, signal and status LEDs, SIM slot (requires 3G miniPCIe card)
• Expansion: miniPCIe slot for 802.11 or 3G (using 3G disables the USB port), USB 2.0 port
• Power options: PoE: 8-30 V DC on Ether1 (non 802.3af)
• Dimensions: 105 x 105 mm
• Weight: 67 g
• Max. consumption: 14 W at 24 V
• OS: MikroTik RouterOS, Level4 license (supports wireless AP mode)
• TX/RX at MCS0: 30 dBm / -96 dBm
• TX/RX at MCS7: 24 dBm / -78 dBm
• TX/RX at 6 Mbit: 30 dBm / -96 dBm
• TX/RX at 54 Mbit: 27 dBm / -80 dBm
• Frequency range: 4900 - 5920 MHz
