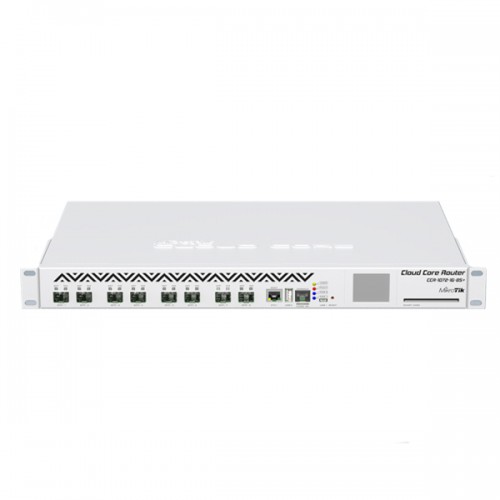

MikroTik CCR1072-1G-8S+ - Cloud Core Router with 16 GB RAM, 8x SFP+

MikroTik CCR1072-1G-8S+ - Cloud Core Router with Tilera Tile-Gx72 CPU, 16 GB RAM, 8x SFP+

Our new flagship router, the CCR1072, is powered by a Tilera 72 core CPU, each core is clocked at 1 GHz, and to fully utilize this power, the CCR1072 is equipped with eight independently connected 10G SFP+ ports.

Thanks to the unique 72-core processor and ports that are directly connected to the CPU, the CCR1072 is capable of over 100 million packets per second throughput.

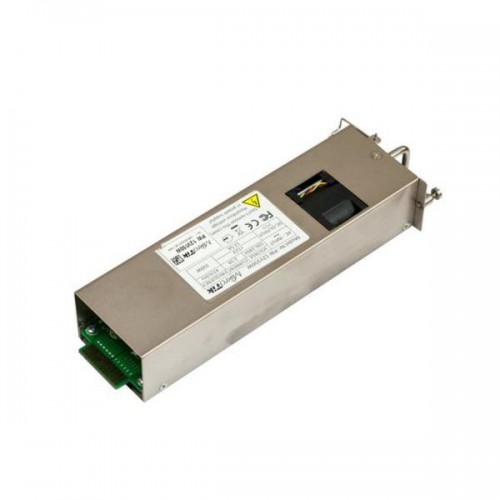

The unit comes equipped with two removable (hot plug) power supplies for redundancy, a smart card slot, eight SFP+ ports and 16 GB of built in ECC RAM.

The CCR1072 also has two built-in M.2 slots, microSD and 2x USB for adding storage, to use for proxy cache, user manager and other features. The M.2 slots accept 80 0mm Key-M x4 PCIe 2.0 modules.

Full set of features

• 8x SFP+ ports
• 16 GB ECC RAM
• Ports directly connected to CPU
• microSD and 2x M.2

Highest performance

• Over 100 million pps packet throughput
• Up to 80 Gbps throughput

New generation CPU

• 72-core CPU
• 1 GHz clock per core
• State of the art TILE GX architecture

Specifications

• Product code: CCR1072-1G-8S+
• CPU nominal frequency: 1 GHz
• CPU core count: 72
• Size of RAM: 16 GB
• Storage: 1 GB onboard NAND, microSD slot
• 10/100/1000 Ethernet ports: 1

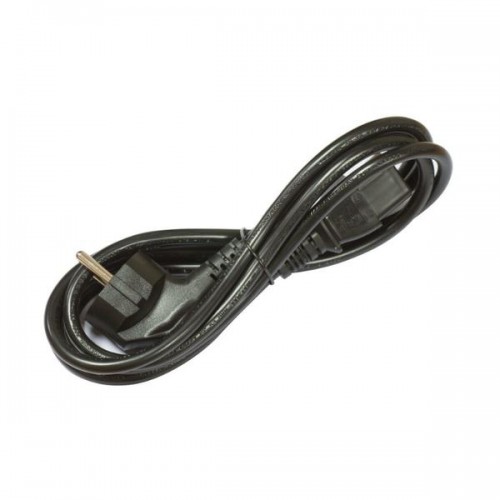

• Power supply: 2x IEC C14 standard connectors 110/220 V (two redundant PSU)
• Supported input voltage: 12 V
• CPU temperature monitor: Yes
• PCB temperature monitor: Yes
• Voltage monitor: Yes
• Current monitor: Yes
• Dimensions: 443 x 315 x 40 mm
• Weight: 3.8 kg, with packaging: 5.125 kg
• License level: 6
• Operating system: RouterOS
• CPU: Tilera Tile-Gx72 CPU
• Max. power consumption: 100 W
• Display: Color LCD, touchscreen
• SFP: 8x 10G Ethernet SFP+ cages (Mini-GBIC; SFP module not included), DDMI support
• Expansion:
  1x microUSB 2.0, 1x regular USB 2.0, full size Smart Card slot, microSD
  slot, 2x M.2 slots with x4 PCIE 2.0, Key-M, module size support: 2242,
  2260, 2280
• Serial port: RJ45
