MikroTik CRS305-1G-4S+IN - Cloud Router Switch 305-1G-4S+IN with 800 MHz CPU

MikroTik CRS305-1G-4S+IN - Cloud Router Switch 305-1G-4S+IN with 800 MHz CPU

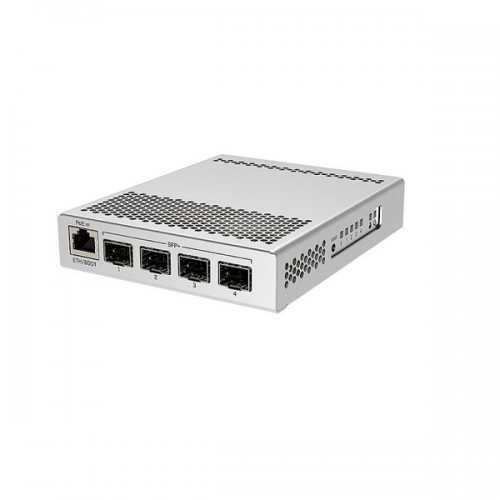

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports for up to 10 Gbit per port. The device has a 1 Gbit copper Ethernet port for management access and two DC jacks for power redundancy. The device has a very sleek and compact metallic case without any fans for silent operation.

The device has a dual boot feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

Specifications

• 4x SFP+ ports

• 1 Gigabit Ethernet ports

• Non-blocking throughput: 41 Gbps

• Switching capacity: 82 Gbps

• Forwarding rate: 61 Mpps

• 2x DC jack for redundancy

• Maximum power consumption: 12 W (with attachments 18 W)

• Supports PoE+ IEEE 802.3at/af and passive PoE 12-57 V

• Metal enclosure

• Fanless


• Product code: CRS305-1G-4S+IN

• CPU: 98DX3236A1 800 MHz

• RAM: 512 MB

• Storage type: Flash

• Storage size: 16 MB

• Switch chip model: 98DX3236A1

• 10/100/1000 Ethernet ports: 1

• SFP+ cages: 4

• Operating system: SwOS/RouterOS (dual boot)

• PoE in: Yes

• Supported input voltage: 12 - 57 V (DC jack and PoE in)

• Number of DC jacks: 2

• Dimensions: 141 x 115 x 28 mm

• Operating temperature: -40°C to +70°C tested

• Max. power consumption: 12 W

• License level: 5
