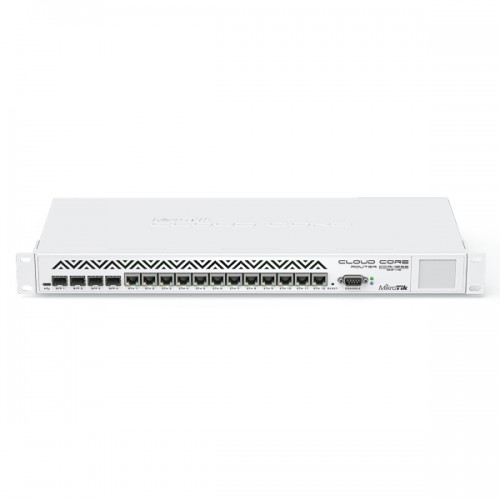

Mikrotik RouterBOARD CCR1036 CCR1036-12G-4S Cloud Core Router

Mikrotik RouterBOARD CCR1036 CCR1036-12G-4S Cloud Core Router

Industrial grade super fast router with brand new cutting edge CPU technology.36 cores! Unprecedented power and unbeatable performance - this is our new flagship device, the Cloud Core Router (CCR1036). If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

New generation CPU

• 36 core networking CPU
• 1.2 GHz clock per core
• 12 Mbytes total on-chip cache
• High speed encryption engine

Highest performance

• Greater than 8 mpps standard forwarding
• Greater than 15 mpps fastpath forwarding
• Up to 16 Gbit/s throughput
• Ports directly connected to CPU

Full set of features

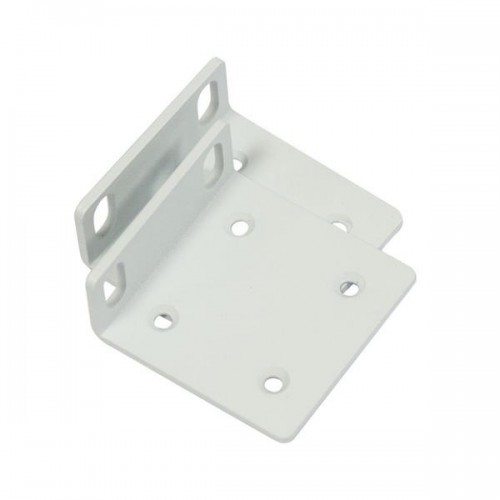

• 1U rackmount case
• 12x Gigabit ports
• 4x SFP ports
• Color touchscreen LCD display

• CPU: Tilera Tile-Gx36 CPU (36-cores, 1.2 GHz per core)
• Memory: 2x SODIMM DDR3 slots, 2x 2GB DDR3 10600 modules installed
• Ethernet: 12x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
• SFP: 4x 1.25G Ethernet SFP cages (Mini-GBIC; SFP module not included)
• Expansion: USB port, host and device mode
• Storage: 1 GB Onboard NAND
• Serial port: One DB9 RS232C asynchronous serial port
• Extras: Reset switch; speed controlled fan; beeper; voltage, current and temperature monitoring
• Power options: IEC C14 standard connector 110/220 V (PSU included), up to 60 W power consumption
• Board dimensions: 355 x 145 x 55 mm
• Temperature: Max. ambient temperature 50° (at) 1.2 GHz; 70° (at) 1 GHz CPU core frequency
• OS: MikroTik RouterOS v6 (64 bit), Level 6 license

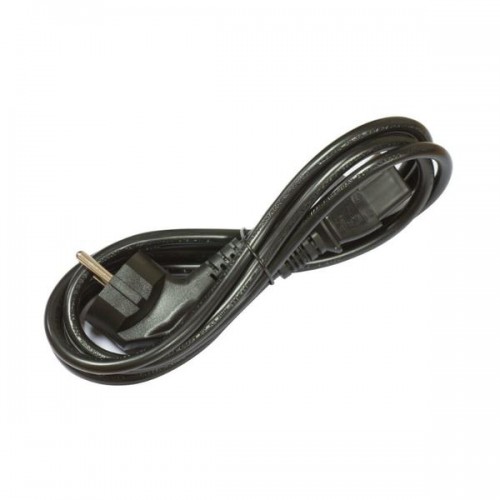

• Included: Router in a 1U case with LCD, PSU, power cable, USB cable
