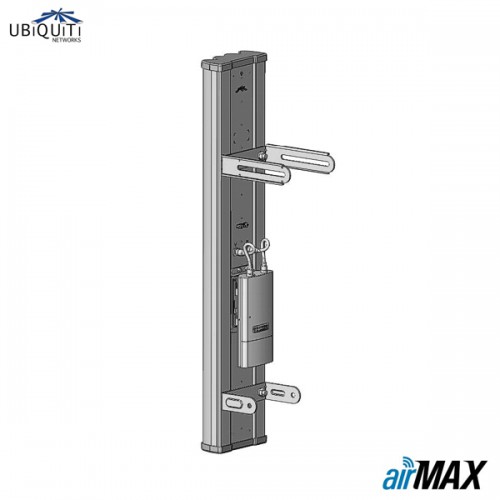

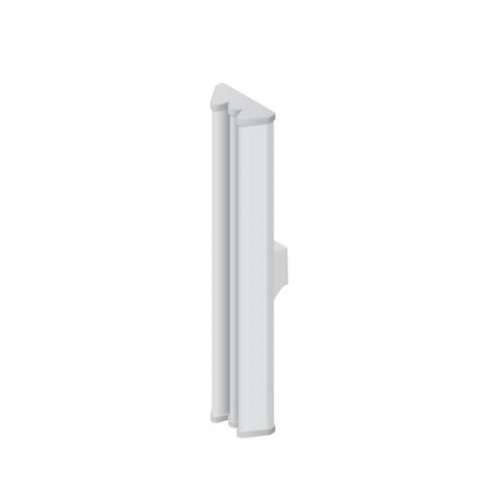

Ubiquiti AM-3G18-120 - 3 GHz AirMax 2x2 MIMO Sector Antenna

Ubiquiti Networks AMS 3G18-120 - 3 GHz AirMax 2x2 MIMO BaseStation Sector Antenna

The airMAX sector antenna is a Carrier Class 2x2 Dual Polarity MIMO sector antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).

Pair the RocketMs radio with the airMAX sector antennas reach to create a powerful base station. This versatile combination gives network architects unparalleled flexibility and convenience.

• Frequency range: 3.3 - 3.8 GHz
• Gain: 17.3 - 18.2 dBi
• Polarization: Dual linear
• Cross-pol isolation: 28 dB min.
• Max. VSWR: 1.5:1
• Hpol beamwidth (6 dB): 118 deg.
• Vpol beamwidth (6 dB): 121 deg.
• Elevation beamwidth: 6 deg.
• Electrical downtilt: 2 deg.
• ETSI specification: EN 302 326 DN2
• Dimensions: 700 x 145 x 93 mm
• Weight: 5.9 kg
• Wind loading: 160 mph
