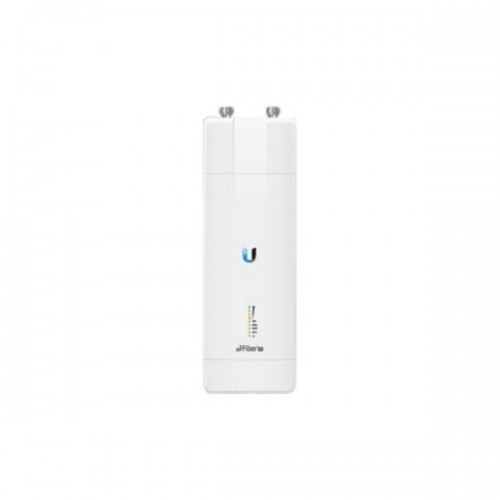

Ubiquiti AF-11FX-L - airFiber 11FX, Low-Band Licensed Backhaul Radio

Ubiquiti AF-11FX-L - airFiber 11FX, Low-Band Licensed Backhaul Radio

• Full-duplex point-to-point radio
• 11 GHz frequency operation
• Up to 1.2+ Gbps throughput

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber(R) AF11FX, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band. The AF11FX breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity. For maximum flexibility, the airFiber AF11FX works with the Ubiquiti(R) AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).

Groundbreaking design
The AF-11FX gives exceptional performance compared to other 11 GHz radios in its price range. Unlike other products that use adaptations of Wi-Fi-based designs, the AF-11FX is specially engineered for the 11 GHz band, with a custom modem and radio design that are optimized for the efficient transport of data. Specific advantages of the AF11FX include:

True full-duplex design
The AF11FX offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.

Ultra-low latency
Overall customer experience and system capacity is enhanced with FDD performance.

Enhanced robustness
The AF11FX features a unique, built-in, rain-fade mitigation strategy for increased link robustness.

Extended range
The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.

Channel configuration

Optimized channels
The airFiber AF11FX can use single (SISO) or bonded (MIMO)* channels, depending on your specific licensing requirements. The AF11FX also features different channel width sizes to suit your deployment needs, and you can
independently configure TX and RX channel frequencies.

Reconfigurable duplexers
The AF-11FX features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11FX radio can be configured to support any allowable frequency by simply changing the duplexers for highband or lowband use in the 10.7 - 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

Highest performance value
The compact AF-11FX supports high-order constellations – up to 1024QAM – allowing it to deliver the greatest spectral efficiency in its class.

Deployment flexibility
The airFiber AF-11FX provides a number of deployment options including:

Power source sptions
Support for PoE or DC power gives you the flexibility to power the AF-11FX separately from Ethernet traffic.

• PoE power can be supplied on the DATA port, using the provided PoE adapter.
• DC power can be supplied using the terminal block.

Versatile, ruggedized N-type connectors
N-connectors allow the AF11FX to be used with either the Ubiquiti AF11G35 antenna or a variety of commonly available antennas. Specially designed silicone boots provide a weatherproof barrier against dust and moisture.

• Dimensions: 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
• Weight: 2.260 kg (5 lb)
• RF connectors:
  • (4) SMA weatherproof: TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1)
  • (2) N-type waterproof, one per duplexer
• Power supply: 50 V DC, 1.2 A PoE Gigabit adapter (included)
• Power method:
  • Passive Power over Ethernet: Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
  • DC power block
• Max. power consumption: 36 W
• Supported voltage range: 38-56 V DC
• Mounting:
  • Integrated pole mount included
  • Oversized Rocket mount compatible
• Certifications: CE, FCC, IC
• Operating temperature: -40°C to 55°C (-40°F to 131°F)
• LEDs: (8) Status LEDs:
  • Data port link/activity
  • Management port link/activity
  • MIMO mode
  • RF link
  • (4) Autoscaling signal strength bar graph
• Networking interfaces:
  • Data port: (1) 10/100/1000 Ethernet port
  • Management port: (1) 10/100 Ethernet port
• Processor: INVICTUS 2 IC
• Maximum throughput: 1.2+ Gbps
• Maximum range: 300+ km
• Encryption: 128-bit AES
• OS: airOS(R) F
• Wireless modes: SISO/MIMO

* Each AF-11FX includes either one lowband duplexer or one highband duplexer for SISO mode configuration. MIMO mode
configuration requires a second low-band or high-band duplexer (not included).
