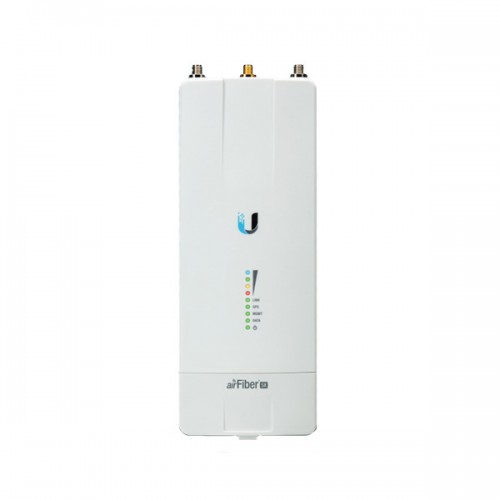

Ubiquiti Networks AF-3X - Carrier Backhaul Radio

Ubiquiti Networks AF-3X - Carrier Backhaul Radio

Overview

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber(R) X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti(R) antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket PointtoPoint (PtP) links.

The airFiber X is available in three frequency bands:

• 2.4 GHz, model AF-2X
• 3 GHz, model AF-3X
• 5 GHz, model AF-5X

Engineered for Performance

Ubiquitis INVICTUS(TM) custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications. The INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and higher delivered throughput.

The airFiber X features industryleading spectral efficiency of up to 13.67 bps/Hz, linerate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT(TM)) for up to 200+ km in range.

Backhaul - 3 GHz

The 3 GHz frequency band offers interference-free operation, enabling the AF-3X to provide a high-reliability backhaul solution, although a license may be required in some regions.

Optimal Operation in Unlicensed Bands

Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments.

• AF-3X: 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MHz

• Model: AF-3X
• Frequency: 3 GHz
• Antenna compatibility: AF-3G26-S45
• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
• Weight: 0.35 kg (0.77 lb)
• RF connectors:
  • (2) RP-SMA weatherproof (CH0, CH1)
  • (1) SMA weatherproof (GPS)
• GPS antenna: External, magnetic base
• Power supply: 24 V, 1 A PoE Gigabit adapter (included)
• Power method:
  • Passive Power over Ethernet
  • Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
• Max. power consumption: 17 W (at) max.power/duty cycle
• Supported voltage range: 19 - 29 V DC
• Mounting:
  • airFiber X Mount (Rocket Mount compatible)
  • GPS pole mount (included)
• Certifications: CE, FCC, IC
• Operating temperature: -40°C to 55°C (-40°F to 131°F)

Networking Interface

• Data port: (1) 10/100/1000 Ethernet port
• Management port: (1) 10/100 Ethernet port

System

• Processor: INVICTUS IC
• Maximum throughput: 525 Mbps
• Maximum range: 200+ km
• Encryption: 128-bit AES
• OS: airOS F
• Wireless modes: Master/Slave

Radio

• Frequency range: 3300 - 3900 MHz (dependent on regulatory region)
• Max. conducted TX power: 29 dBm2 (dependent on regulatory region)
• Frequency accuracy:
• +/- 2.5 ppm without GPS Synchronization
• +/- 0.2 ppm with GPS Synchronization
• Channel bandwidth:
• 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable
• Programmable uplink and downlink duty cycles
• Independently programmable TX and RX frequencies
