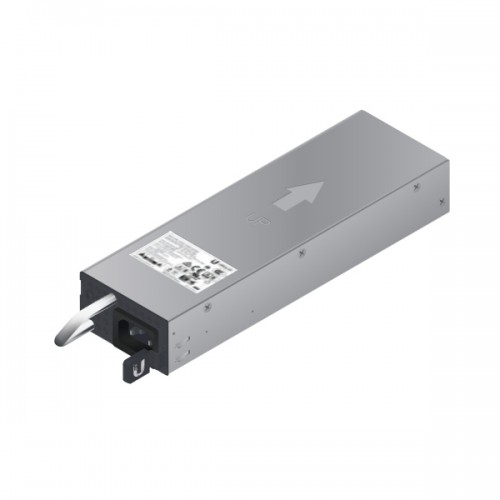

Ubiquiti EP-54V-150W-AC - Optional Power Supply Module

Ubiquiti EP-54V-150W-AC - Optional Power Supply Module

A secondary PSU module bay for the EP-54V-150W for reserving a hotswappable backup PSU or for increasing the DC output power to 300 W. Two PSU models are available:

• AC/DC 54 V, 150 W PSU, Model: EP-54V-150W-AC
• DC/DC 54 V, 150 W PSU, Model: EP-54V-150W-DC

Installing a secondary PSU module (optional):

1. Depress the four locking tabs on the Bay Cover of the EP-54V-150W and remove it.
2. Insert the PSU module until the Lock Lever engages and locks into place.

Note: To remove a PSU module, push and hold the Lock Lever to the left and then pull the module out.
