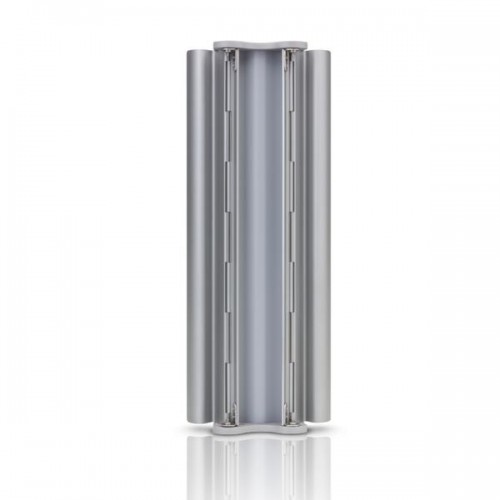

Ubiquiti AM-M-V5G-TI - 5 GHz 2x2 MIMO AirMax Titanium Sector Antenna

Ubiquiti AM-M-V5G-TI - 5 GHz 2x2 MIMO AirMax Titanium Sector Antenna

UBNT Advanced RF Isolation Variable Beamwidth Antenna

• Carrier-class 2x2 MIMO PtMP BaseStation
• Adjustable beamwidth configuration
• Reduced co-location interference


Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquitis best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.

Reduced Co-Location Interference

Drawing on Ubiquitis depth of electrical and mechnical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in colocation deployments.

Adjustable Beamwidth Configuration

Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60, 90, or 120 sector. Antenna gain increases respectively with each decrease in beamwidth. Gain is 15 dBi at 120, 16 dBi at 90, and 17 dBi at 60.

Increased Performance

The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket(TM)M Titanium.

• 20% increase in performance with PtMP networks
• Up to 90% performance improvement in a co-location environment
• Increased durability in harsh weather

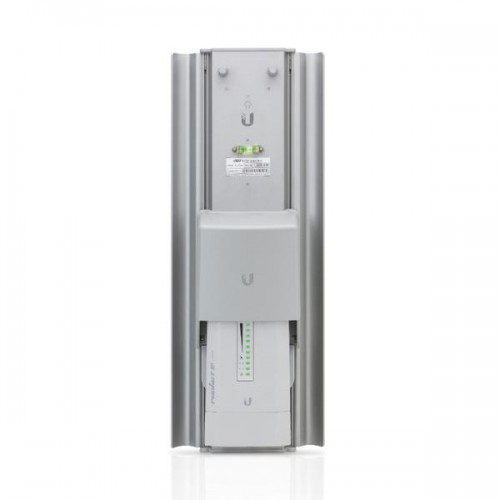

Easily Mount and Protect Your Rocket

The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.

• Dimensions: 385 x 149 x 76 mm
• Weight: 3.25 kg (with brackets)
• Frequency range: 5.45 - 5.85 GHz
• Beamwidth angles: 60/ 90/ 120
• Gain (beamwidth dependent):
  • 17 dBi (at) 60
  • 16 dBi (at) 90
  • 15 dBi (at) 120
• Electrical downtilt: 3
• Polarization: Dual linear
• Cross-pol isolation: 25 dB min.
• F/B ratio: 35 dB
• Max. VSWR: 1.7:1
• RF connectors: 2x SMA connectors (weatherproof )
• Compatible radios:
  • RocketM5
  • RocketM5 GPS
  • RocketM5 Titanium
• Mounting: Pole mount (kit included)
• ETSI specification: EN 302 326 DN2
• Certifications: CE, FCC, IC
• Wind survivability: 125 mph
• Wind loading: 15 lbs (at) 100 mph
