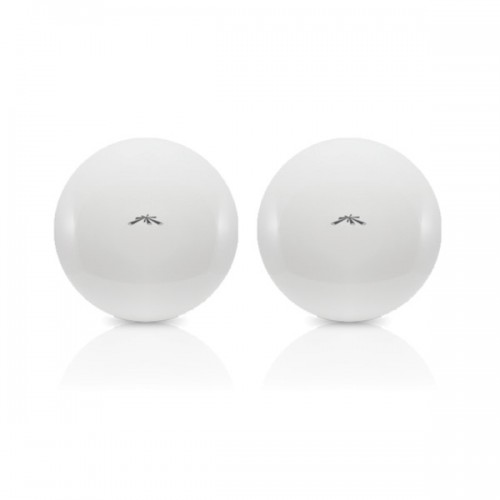

Ubiquiti Networks NBE-M2-13-2P - NanoBeam M2, 13 dBi, 2.4 GHz (2-Pack)

Ubiquiti Networks NBE-M2-13-2P - NanoBeam M2, 13 dBi, 2.4 GHz (2-Pack)

Starting with the first-generation NanoBridge(R), Ubiquiti Networks(R) pioneered the all-in-one design for an airMAX(R) product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest
generation of CPE, the NanoBeam(R).

Improved Noise Immunity
The NanoBeam directs RF energy in a tighter beamwidth. With the focus in
one direction, the NanoBeam blocks or spatially filters out noise, so
noise immunity is improved. This feature is especially important in an
area crowded with other RF signals of the same or similar frequency.

Integrated Design
The Ubiquiti Research and Development team combined the radio and antenna
to create a more efficient and compact CPE. The NanoBeam gets maximum
gain out of the smallest footprint. Providing increased performance from its faster processor and innovative mechanical design at a low cost,
the NanoBeam is extremely versatile and costeffective to deploy.

airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquitis Time Division Multiple Access
(TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes
airtime efficiency. It provides significant performance improvements in
latency, throughput, and scalability compared to all other outdoor
systems in its class.

• Intelligent QoS Priority: is given to voice/video for seamless streaming.
• Scalability: High capacity and scalability.
• Long Distance: Capable of highspeed, carrier-class links.

System and Regulatory/Compliance

• Model: NBE-M2-13
• Processor: Specs Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• Networking Interface: (1) 10/100 Ethernet Port
• Wireless Approval:s FCC, IC, CE
• RoHS Compliance: yes

Physical/Electrical/Environmental

• Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92 in)
• Weight: 0.530 kg (1.17 lb)
• Power Supply: 24 V, 0.5 A PoE
• Power Method:Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption: 6 W
• Gain: 13 dBi
• Wind Loading: 45.4 N (at) 200 km/h (10.2 lbf (at) 125 mph
• Wind Survivability: 200 km/h (125 mph)
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal Strength: LEDs Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included), Wall-Mount
• ESD/EMP Protection Air: +/- 24 kV, Contact: +/- 24 kV
• Operating Temperature: -40 to 80 °C (-40 to 176 °F)
• Operating Humidity: 5 to 95 % Noncondensing
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40 °C (104 °F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5


Operating Frequency

• Operating Frequency: 2405 - 2475 MHz
