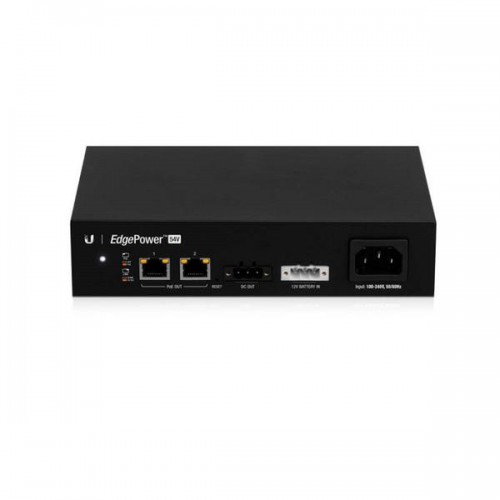

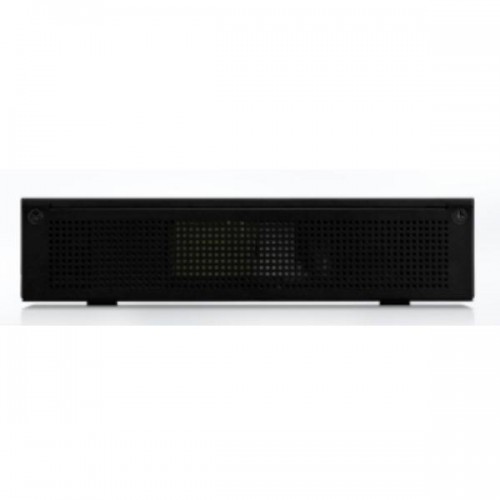

Ubiquiti Networks EP-54V-72W - Modular DC Power Supply with UPS and PoE

Ubiquiti Networks EP-54V-72W - Modular DC Power Supply with UPS and PoE

Protect your WISP site against power loss with the EdgePower EP24V72W or EP-54V-72W, a convenient UPS device with dual PoE output ports. You can receive alerts in the event of a power outage, and the EP24V72W or EP-54V-72W offers a 12 V lead acid battery input (optional) for redundancy if the AC input fails over.

• 54 V DC output
• Dual 54 V DC passive PoE output
• AC input
• Optional 12 V battery input

• Dimensions: 192 x 43.7 x 115 mm (7.559 x 1.72 x 4.528")
• Weight: 650 g (1.43 lb)
• Interfaces: Networking: (2) 10/100 Mbps RJ45 ports; Management: Ethernet in-band
• PoE output: (2) 54 V DC passive PoE (pins 4, 5+; 7, 8-)
• DC output: 54 V, 1.3 A
• Power method: AC input: 100-240 V AC, 50-60 Hz, universal input; Battery input: DC terminal block
• Power supply: AC input: AC/DC 72 W; Battery input: 12 V DC lead acid battery*
• Max. power consumption: System: 2 W; Output: 72 W
• LEDs: System: Status; RJ45 data ports: PoE, link/activity
• ESD/EMP protection: Air: +/-12 kV, contact: +/-12 kV
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Operating humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC

*Battery not included
