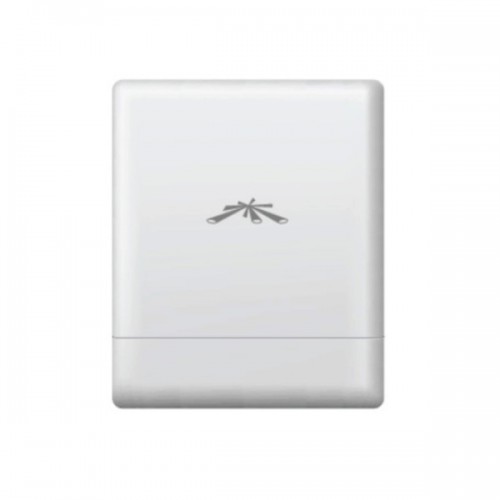

NanoStation M900 Loco: Compact 900 MHz 2x2 MIMO AirMax Station

NanoStation M900 Loco: Compact 900MHz 2x2 MIMO AirMax Station

- Please note: In some countries, the use of this product is restricted or not allowed. Please check with the appropriate authority in your country. -

Featuring a panel antenna and dual-polarity performance, the NanoStation(R)M is ideal for point-to-multipoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

• Processor specs: Atheros MIPS 24KC, 400 MHz
• Memory information: 64 MB SDRAM, 8 MB Flash
• Networking interface: 1x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet interface
• Enclosure size: 164 mm length x 199 mm width x 72 mm height
• Weight: 0.9 kg
• RF connector: External SMA
• Enclosure characteristics: Outdoor UV stabalized plastic
• Mounting kit: Pole mounting kit included
• Ma. power consumption: 6.5 Watts
• Power supply: 24 V, 1 A PoE supply Included
• Power method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating temperature: -30°C to 75°C
• Operating humidity: 5 to 95% condensing
• Shock and vibration: ETSI300-019-1.4

INTEGRATED 2x2 MIMO ANTENNA (there is also an external RP-SMA connector for an external higher gain antenna)

• Frequency range: 902-928MHz
• Gain: 7.5 dBi
• Polarization: Dual linear
• Cross-pol isolation: 28 dB minimum
• Max. VSWR: 1.3:1
• H-pol beamwidth: 60 deg.
• V-pol beamwidth: 60 deg.
• Elevation beamwidth: 60 deg.
