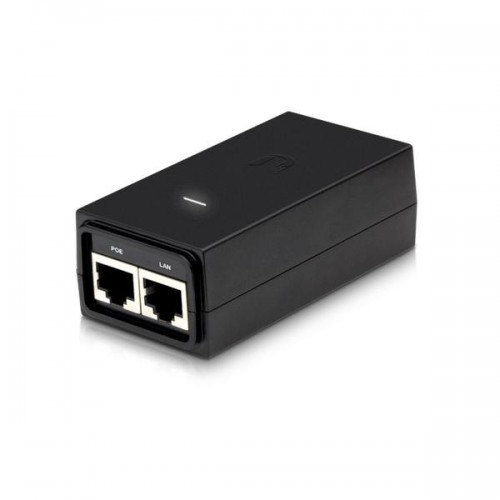

Ubiquiti Networks POE-24-12W - PoE Injector, 24 V DC (at) 0.5 A

Ubiquiti Networks POE-24-12W - PoE Injector, 24 V DC (at) 0.5 A

Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a
variety of Ubiquiti products. The PoE adapters are compatible with most
Ubiquiti PoE devices*, including: airFiber(R), airMAX(R), EdgeMAX(R), mFi(R),
UniFi(R) AP, UniFi Video / airVision(R).

• Output voltage: 24 V DC (at) 0.5 A
• Input voltage: 90-260 V AC (at) 47-63 Hz
• Input current: 0.3 A (at)120 V AC, 0.2 A (at) 230 V AC
• Inrush current: <15 A peak (at) 120 V AC, <30 A peak
• Efficiency: 70+ %
• Output ripple: 1% max.
• Switching frequency: 200 kHz
• Line regulation: +/- 0.5%
• Load regulation: +/- 1%
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +85°C
• Size (L x W x H): 85 x 55 x 33 (mm)
• Weight: 4 oz
• AC connector: IEC-320 C6
• Data IN / POE: RJ45 shielded socket
• 80% current indicator: Power LED will change color
• Surge protection: Common mode
• Clamping protection: 11 V Data, 77.5 V Power
• Max. surge discharge: 1200 A (8/20 uS) Power
• Peak pulse current: 36 A (10/1000 uS Data)
• Shunt capacitance: <5 pF data
• Response time: <1 nS
• Compliance: UL, EN55022 (CISPR22) class B, meets CE
• NO remote reset button
