Ubiquiti IS-5AC - 5 GHz IsoStation AC

Ubiquiti IS-5AC - 5 GHz IsoStation AC

Ubiquiti Networks launches the latest generation of airMAX ac CPE (Customer Premises
Equipment) with dedicated Wi-Fi management, the IsoStation(TM) 5AC.

Improved Noise Immunity

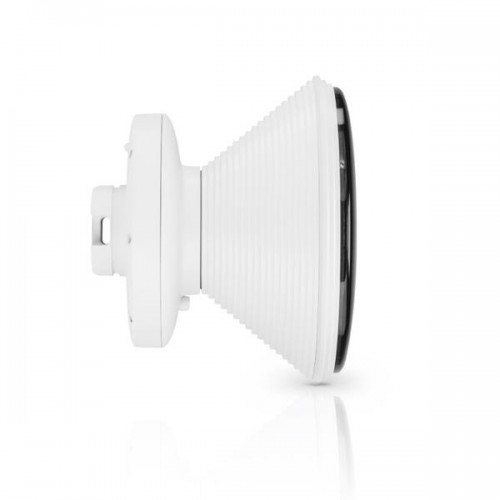

The IsoStation 5AC provides high isolation solutions in fixed beamwidth
increments through interchangeable horn antennas that have been
optimized for an urban environment. The tailored antenna radiation
patterns spatially filters both in-band and out-of-band spurious RF
emissions to increase the noise immunity of the IsoStation 5AC. This
feature is especially important in an increasingly congested RF
environment.

Modular Design

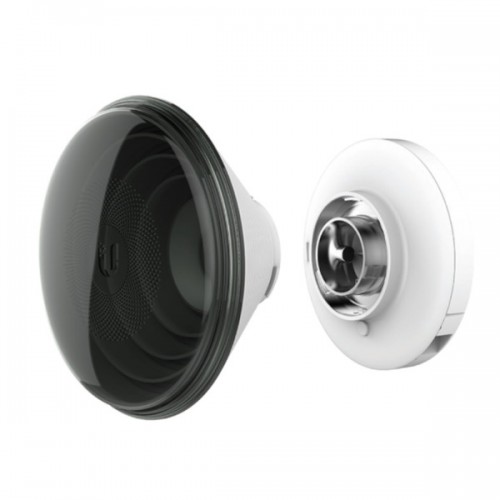

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable
and improves beamshaping for specific deployment and environment needs. The IsoStation 5AC uses horn antenna sectors designed for increased
colocation performance without sacrificing gain.
Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and costeffective to deploy.

airOS 8 Software
Sporting an all-new design for improved usability, airOS(R) v8 is the
revolutionary operating system for Ubiquiti(R) airMAX ac products.

U Mobile App
The IsoStation 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

airMAX ac Technology
The next-generation airMAX ac technology boosts the advantages of
Ubiquiti's proprietary TDMA protocol. Ubiquitis airMAX engine with
custom IC dramatically improves TDMA latency and network scalability.
The custom silicon provides hardware acceleration capabilities to the
airMAX scheduler, to support the high data rates and dense modulation
used in airMAX ac technology.

airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX. With their
use of proprietary airMAX ac technology, airMAX ac products supports up
to 450+ Mbps real TCP/IP throughput – up to triple the throughput of
standard airMAX products.

• Operating Frequency: 2412 - 2462 MHz, 5150 - 5875 MHz

• Dimensions:
• With Horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
• Without Horn: 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")
• Weight:
• With Horn: 725.7 g (1.6 lb)
• Without Horn: 408.2 g (0.9 lb)
• Max. Power Consumption: 8.5 W
• Power Supply: 24 V, 0.5 A Gigabit PoE Adapter
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 14 dBi
• Beamwidth: 45° (Default Horn)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74 Kc
• Memory: 64 MB DDR2
• LED: (1) Power
• Mounting: Pole-Mount
• Wind Loading: 36 N (at) 200 km/h (8.09 lbf (at) 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/EMP Protection: +/- 24 kV Contact/Air
• Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Operating Humidity: 5 to 95 % Noncondensing
• Certifications: FCC, IC, CE
