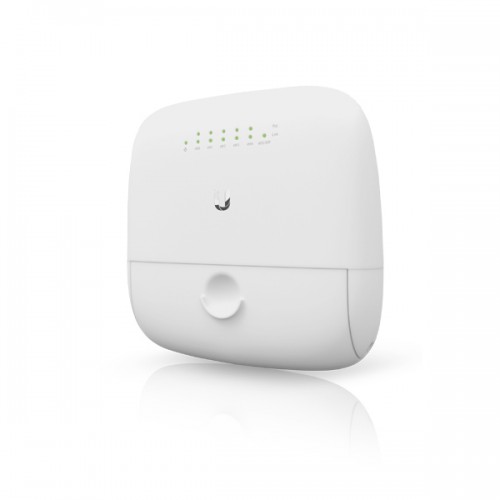

Ubiquiti EP-R6 - Intelligent WISP Control Point with FiberProtect(TM)

Ubiquiti EP-R6 - Intelligent WISP Control Point with FiberProtect(TM)

• Weatherproof Enclosure for Outdoor Use
• Powerful Routing or Switching Features
• Fiber Backhaul Capability

Ubiquiti Networks introduces the EdgePoint(TM), part of the EdgeMAX(R)platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities. The EdgePoint is available in three models:

• EP-R6: Layer-3 router
• EP-R8: Layer-3 router
• EP-S16: Layer-2 switch with some layer-3 capabilities

Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI),
greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

All-in-One Design
A single, compact controller efficiently eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Robust Construction
The ruggedized case withstands outdoor conditions, including wind, rain, and snow. The included cable sleeve protects the cables and cable opening. If you prefer, you can swap it out for your own conduit.

Advanced Applications
For the EP-R6 and EP-R8, powerful routing features – such as load balancing and failover– provide redundancy and increased performance for outdoor wireless links. For the EP-S16, layer-2 link aggregation provides similar redundancy and increased performance benefits.

Versatile Power Options
Powered by 54 V DC or by PoE, the EP-R8 and EP-S16 can support 54 or 24 V passive PoE to power all Ubiquiti(R) products, including airFiber(R) and airMAX(R). Powered by 24 V DC or by PoE, the EP-R6 can support 24 V passive PoE to power most Ubiquiti products.

Intuitive User Interface
The EdgePoint features a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. Depending on whether you are configuring a router (EP-R6 or EP-R8) or switch (EP-S16), the configuration interface will differ.

Routing Configuration
The EP-R6 or EP-R8 offers robust features, including:

• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, and BGP
• Firewall policies and NAT rules
• Application identification with Deep Packet Inspection (DPI)
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support

Switching Configuration
The EP-S16 provides advanced features, including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:

• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands (EP-R6 or EP-R8 only)
• CLI access through the following:
  • Serial console port (EP-R8 or EP-S16 only)
  • SSH
  • Telnet
  • Graphical user interface (EP-R6 or EP-R8 only)

Hardware Overview
The EP-R6 features five RJ45 Ethernet ports and one SFP Ethernet port.

Bottom Panel

• Power Options:
  • 24 V DC, 3 A Terminal Block
  • PoE Input
• (5) 24 V, 0.7 A Passive PoE Output Ports
• (1) SFP Port

• Dimensions: 188.6 x 177.1 x 49.8 mm (7.43 x 6.97 x 1.96")
• Weight: 605 g (1.33 lb)
• Max. Power Consumption: 7 W (excludes PoE Output)
• Power Input:
• (1) DC Terminal Block or
• (1) RJ45 (eth0)
• (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
• Power Supply: Min. 24 V / 0.3 A (excludes PoE Output Power)
• V DC Input: 24 V, 3 A
• Passive PoE Input:

• (1) 24 V / 1.4 A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
• (Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.)
• Passive PoE Output: (5) 24 V / 0.7 A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
• Power Monitoring:
• (1) DC Terminal Block, Input Power
• (1) RJ45, eth0, Input Power
• Supported Voltage Range: 26 to 16 V DC
• Button: Reset
• LEDs
• System: Power
• eth0 to eth4: Speed/Link/Activity, PoE
• eth5/SFP: Speed/Link/Activity
• Ports:
• Data Ports:
• (5) 10/100/1000 RJ45 Ports
• (1) 1 Gbps SFP Port
• Processor: Dual-Core 880 MHz, MIPS1004Kc with Hardware Acceleration for Packet Processing
• System Memory: 256 MB DDR3-1600 RAM
• Code Storage: 256 MB NAND
• Certifications: CE, FCC, IC
• Pole Mount: Yes
• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Operating Humidity: 10 to 90% non-condensing
