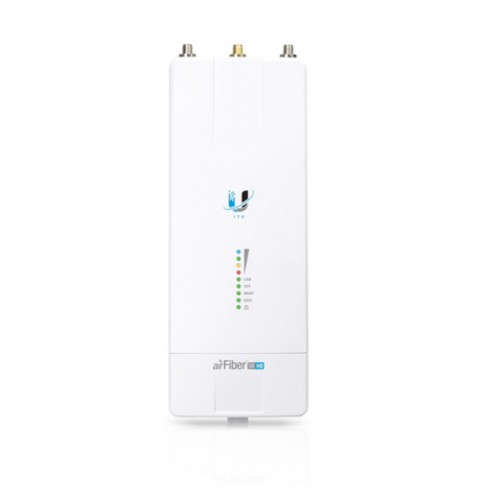

Ubiquiti AF-5XHD - airFiber 5XHD, 5 GHz Carrier Radio with LTU(TM) Technology

Ubiquiti AF-5XHD - airFiber 5XHD, 5 GHz Carrier Radio with LTU(TM) Technology

• Up to 1 Gbps real throughput, up to 100 km range
• Full-band certification including DFS
• Ubiquitis LTU(TM) custom silicon

Overview

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber(R) AF-5XHD. Designed for use in the 5 GHz frequency band, the AF5XHD features the newest radio technology, offering greater channel bandwidths (up to 100 MHz) and more advanced RF components.

The AF5XHD is also compatible with a number of existing Ubiquiti(R) antennas for the 5 GHz band, including airFiber X antennas and certain RocketDish(TM) antennas. Pair the AF5XHD with a compatible Ubiquiti antenna for a complete 5 GHz Point-to-Point (PtP) solution.

The AF5XHD also includes a special IP67 upgrade kit for enhanced protection from dust and water.

Engineered for Performance

Ubiquiti's custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

The core communications processing engine surpasses all of the limitation sinherent to generic WiFi chips to provide superior performance, long-range capability, DFS flexibility, higher constellations, and power output, along with better receive sensitivity.

The AF5XHD features industry-leading 10.6 bps/Hz spectral efficiency, line-rate data packet processing for up to 1 Gbps of real data throughput, and innovative xtreme Range Technology (xRT(TM)) for up to 100 km in range.

• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89 inch)
• Weight: 0.35 kg (12.3 oz)
• RF connectors:
• (2) RP-SMA weatherproof (CH0, CH1)
• (1) SMA weatherproof (GPS)
• GPS antenna: External, magnetic base
• Power supply: 24 V, 1 A Gigabit PoE adapter (included)
• Power method: Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
• Max. power consumption: 6 - 12 W
• Supported voltage range: 24 - 50 V DC
• Mounting:
• airFiber X mount (Rocket mount compatible)
• GPS pole mount (included)
• Operating temperature: -40°C to 55°C (-40°F to 131°F)
• IP rating: IP67
• Certifications: CE, FCC, IC

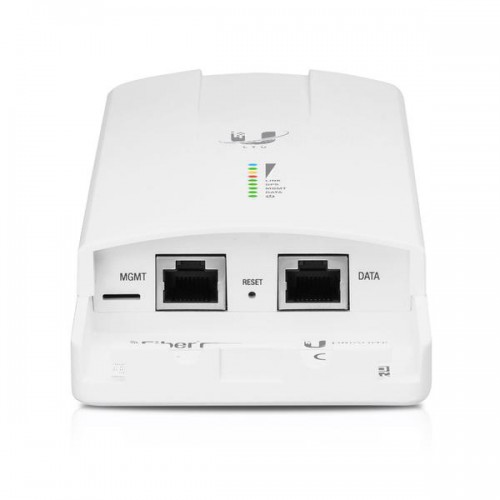

• Networking interface:
• Data port: (1) 10/100/1000 Ethernet port
• Management port: (1) 10/100/1000 Ethernet port

System

• Processor: airFiber LTU IC
• Maximum throughput: 1 Gbps
• Maximum range: 100 km
• Packets per second: 2+ million
• Encryption: WPA2-PSK (AES)
• OS: airFiber-airOS 8
• Wireless modes: AP/CPE

Radio

• Frequency range: 4.8 - 6.2 GHz (dependent on regulatory region)
• Max. conducted TX power: 29 dBm (dependent on regulatory region)
• Frequency accuracy: <2 ppm
• Channel bandwidth:
• 10/20/30/40/50/60/80/100 MHz selectable
• Programmable uplink and downlink duty cycles
