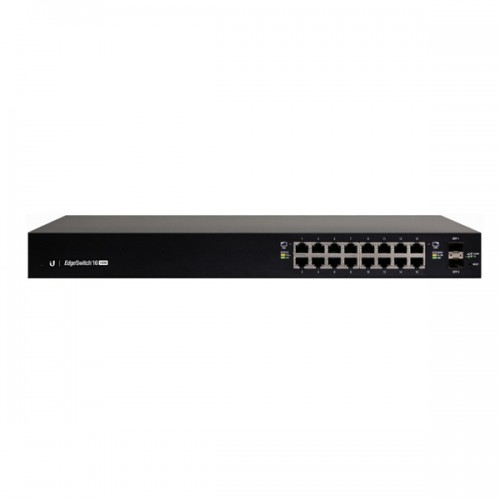

Ubiquiti ES-16-150W - EdgeSwitch, 16-port, 150 W

Ubiquiti ES-16-150W - EdgeSwitch, 16-port, 150 W
Managed PoE+ Gigabit Switch with SFP

• Non-Blocking Throughput Switching Performance
• Gigabit Ethernet RJ45 and SFP+/SFP Ports
• Auto-Sensing IEEE 802.3af/at PoE

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks(R) EdgeSwitch(TM), part of the EdgeMAX(R) line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 16-port model supports up to 18 Gbps, and the 24port models support up to 26 Gbps. The 48port models support up to 70 Gbps.

PoE+ Flexibility
The EdgeSwitch models are available with 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 16 and 24port models include two SFP ports, providing up to 1 Gbps uplinks. For highcapacity uplinks, the 48port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.

EdgeSwitch 16 (150 W Model)

• Model: ES-16-150W
• (16) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Maximum Power Consumption: 150 W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable with Rack-Mount Brackets (included)

Hardware Specifications

• Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
• Weight: 2.80 kg (6.17 lb)
  • With Mount Brackets: 2.89 kg (6.37 lb)
• Total Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Max. Power Consumption: 150 W
• Power Method: 100 240 V AC/50 60 Hz, Universal Input
• Power Supply: AC/DC, Internal, 150 W DC
• LEDs per Port:
  • Serial Console Port: N/A
  • RJ45 Data Ports: PoE, Speed/Link/Activity
  • SFP Data Ports: Speed/Link/Activity
• Networking Interfaces:
  • (16) 10/100/1000 Mbps RJ45 Ethernet Ports
  • (2) 1 Gbps SFP Ethernet Ports
• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
• Certifications: CE, FCC, IC
• Rackmount: Yes, 1U High
• ESD/EMP Protection
  • Air: +/-24 kV
  • Contact: +/-24 kV
• Operating Temperature: 5 °C to 40 ° C (23 °F to 104 ° F)
• Operating Humidity: 5 to 95 % Noncondensing
• Shock and Vibration: ETSI3000191.4 Standard

PoE per Port

• PoE Interfaces:
  • PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • 24 V DC Passive PoE (Pins 4, 5+; 7, 8)
• Max. PoE+ Wattage per Port by PSE: 34.2 W
• Voltage Range 802.3at Mode: 50 – 57 V
• Max. Passive PoE Wattage per Port: 17 W
• 24V Passive PoE Voltage Range: 20 27 V
