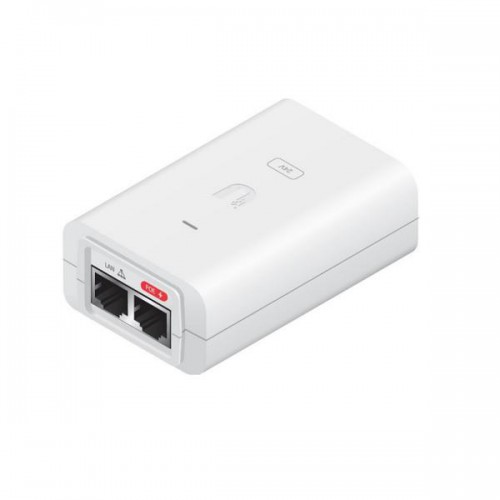

POE-24-30W-G-WH - Gigabit PoE Injector, 24 V DC, 1.25 A, white

POE-24-30W-G-WH - Gigabit PoE Injector, 24 V DC, 1.25 A, white

Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices*, including:

• airFiber(R)
• airMAX(R)
• EdgeMAX(R)
• mFi(R)
• UniFi(R) AP
• UniFi Protect/airVision(R)
• UniFi LED
• U Fiber

*Check product specifications to verify PoE compatibility.

Protection

Ubiquiti PoE adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE adapter, TOUGHCable(TM), and TOUGHCable connectors.

• Model: POE-24-30W-G-WH
• Dimensions: 94 x 60 x 33 mm (3.70 x 2.36 x 1.30")
• Weight: 156 g (5.5 oz)
• Output voltage: 24 V DC (at) 1.25 A
• LAN activity indicator: No
• Gigabit LAN port: Yes
• Remote reset capability: No
• Reset button: No
• Rated voltage 100-240 V AC (at) 50/60 Hz
• Input current: 0.6 A (at) 120 V AC; 0.4 A (at) 240 V AC
• Inrush current: <60 A peak (at) 120 V AC; <120 A peak (at) 230 V AC
• Efficiency: 83+%
• Output ripple: 1% max.
• Switching frequency: 65 kHz
• Line regulation: ≤ 3%
• Load regulation: ≤ 5%
• 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)
• 4-pair powering: –
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -30°C to 70°C (-22°F to 158° F)
• Operating humidity: 35% to 95% non-condensing
• AC connector: IEC-320 C6
• Data IN/POE: RJ45 shielded socket
• Surge protection: Difference and common mode
• Clamping protection: 11 V data, 60 V power
• Max. surge discharge: 1500 A (8/20 s) power
• Peak pulse current: 36 A (10/1000 s) data
• Shunt capacitance: <5 pF data
• Response time: <1 ns
• Certifications: CE, FCC, IC, UL
