Ubiquiti ES-16-XG - 10G 16-Port Managed Aggregation Switch

Ubiquiti ES-16-XG - 10G 16-Port Managed Aggregation Switch

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks(R) EdgeSwitch(TM) XG, part of the EdgeMAX(R) line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

10G High-Capacity Links

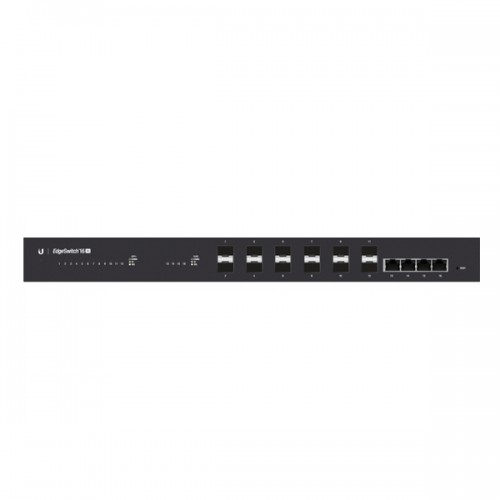

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

Model: ES-16-XG

• (12) SFP+ Ports
• (4) 10G RJ45 Ports
• (1) RJ45 Serial Console Port
• Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Rack Mountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)

Hardware Specifications

• Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
• Weight:
  • Rack-Mount Brackets Included: 2.71 kg (5.97 lb)
  • Rack-Mount Brackets Excluded: 2.62 kg (5.78 lb)
• Enclosure Characteristics: SGCC Steel
• Total Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Max. DC Power Consumption: 36 W (Excludes SFP/SFP+ Modules)

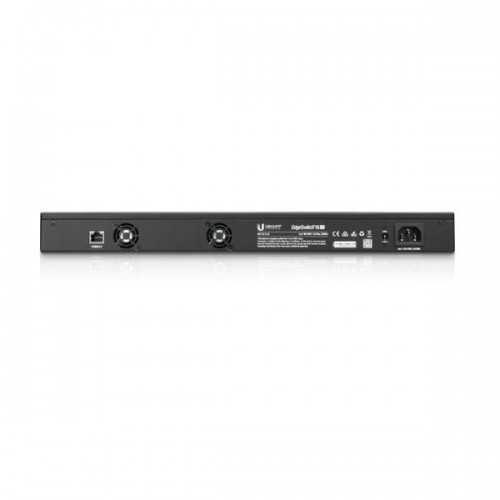

• Power Method:
  • 100-240 V AC/50-60 Hz, Universal Input
  • DC 56 W, 25 to 16 V, with 2.5 mm DC Power Inline Connector
• Supported Voltage Range:
  • 100 to 240 V AC
  • 25 to 16 V DC
• Power Supply: AC/DC, Internal, 56 W DC
• LEDs Per Data Port: Speed/Link/Activity
• Networking Interfaces:
  • (12) 1/10 Gbps SFP+ Ethernet Ports
  • (4) 1/10 Gbps RJ45 Ethernet Ports
• Management Interface (1): RJ45 Serial Port, Ethernet In/Out Band
• Certifications: CE, FCC, IC
• Rack Mount: Yes, 1U High
• ESD/EMP Protection:
  • Air: +/- 24 kV
  • Contact: +/- 24 kV
• Operating Temperature: -5° C to 40° C (23° F to 104° F)
• Operating Humidity: 5 to 95% non condensing
• Shock and Vibration: ETSI300-019-1.4 Standard
