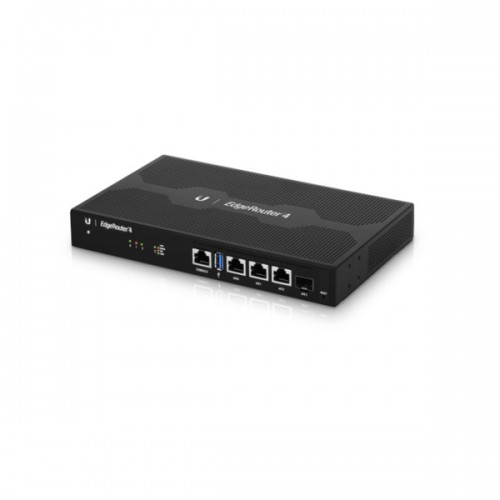

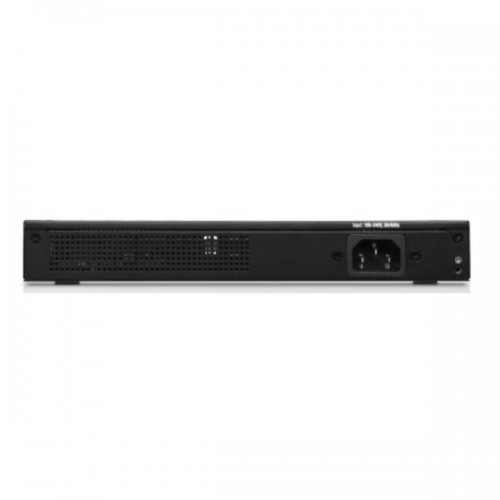

Ubiquiti ER-4 - EdgeRouter 4, 4-Port Gigabit Router with SFP

Ubiquiti Networks ER-4 - EdgeRouter 4, 4-Port Gigabit Router with SFP

Ubiquiti Networks introduces the EdgeRouter(TM) 4, part of the next generation of routers for the EdgeMAX(R) platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit.

The EdgeRouter 4 offers three Gigabit Ethernet ports and an SFP port for a fiber link.

The EdgeRouter 4 is capable of routing up to 3.4 million packets per second and has a line rate of 4 Gbps.

Powered by a proprietary and intuitive graphical interface, EdgeOS(R), EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Even greater convenience and flexibility is provided by the U Mobile app, which makes it possible to manage the EdgeRouter remotely from your mobile device.

Additionally, the EdgeRouter 4 is supported and managed by the Ubiquiti(R) Network Management System. UNMS(TM) is a comprehensive management controller featuring a graphic UI that is easy to navigate. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.

Key Features

• 3x Gigabit RJ45 routing ports
• 1x Gigabit SFP port
• 3.4 million packets per second for 64-byte packets
• 4 Gbps for packets 128 bytes or larger in size
• Silent, fanless operation
• Compact, durable metal case

• Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in)
• Weight: 0.8 kg (1.76 lb)
• Max. power consumption: 13 W
• Power: Internal AC power adapter
• Power input: 110 - 240 V AC
• Button: Reset
• LEDs:
• Data ports: Speed/link/activity
• SFP data port: Link/activity
• Networking interfaces:
• Management: 1x RJ45 serial port, 4x Ethernet ports (default eth0)
• Networking: 3x 10/100/1000 RJ45 ports, 1x 1 Gbps SFP port
• Processor: 4-core 1 GHz, MIPS64
• System memory: 1 GB DDR3 RAM
• On-board flash storage: 4 GB eMMC, 8 MB SPI NOR
• Rack-mountable: Yes
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 10 - 90% non-condensing
• Certifications: CE, FCC, IC
