UAP-AC-IW - 802.11AC Dual-Radio Access Point, In-Wall

Ubiquiti Networks UAP-AC-IW - 802.11AC Dual-Radio Access Point, In-Wall

• Unlimited indoor/outdoor AP scalability in a unified management system
• Breakthrough speeds up to 1300 Mbps in the 5 GHz band
• Intuitive UniFi Controller software

Scalable Enterprise Wi-Fi Management
UniFi(R) is the revolutionary Wi-Fi system that combines enterprise
performance, unlimited scalability, and a central management controller. UniFi 802.11AC DualRadio Access Points (APs) have a refined
industrial design and can be easily installed using the included
mounting hardware.

Easily accessible through any standard web browser, the UniFi
Controller software is a powerful software engine ideal for
high-density client deployments requiring low latency and high uptime
performance.

Use the UniFi Controller software to quickly configure and administer
an enterprise Wi-Fi network – no special training required. RF map and
performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Features

Save money and save time
Unlike traditional enterprise Wi-Fi systems that use a hardware
controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a
private cloud; or using a public cloud service.

Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.

Expandable
Unlimited scalability: build wireless networks as big or small as
needed. Start with one (or upgrade to a threepack) and expand to
thousands while maintaining a single unified management system.

UAP-AC-IW

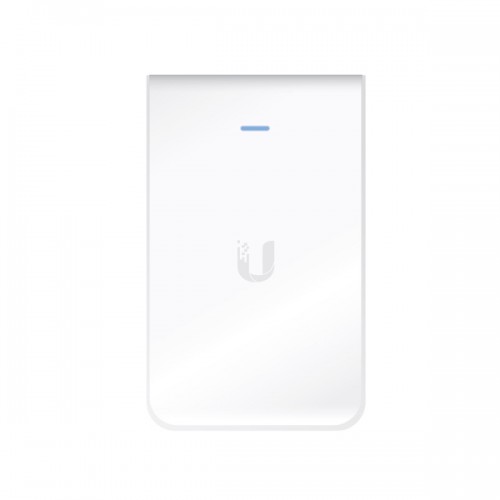

The UniFi AC In-Wall AP transforms an Ethernet wall connection into a

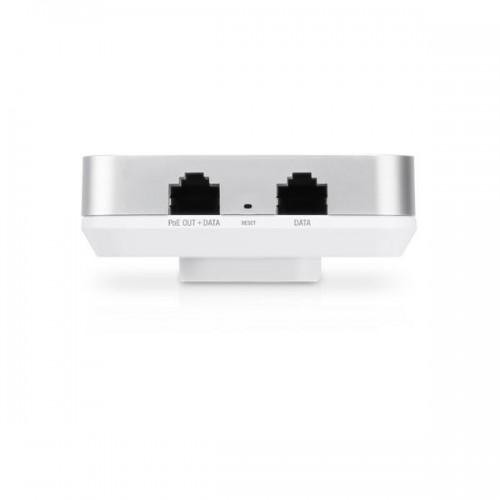

dual-band 802.11AC Wi-Fi Access Point. It features two Gigabit Ethernet ports, one of which delivers PoE to power and connect an 802.3af device to the network. The UniFi AC In-Wall AP provides simultaneous,
dual-band, 2x2 MIMO technology and is available in single- and
fivepacks (PoE adapters not included).

• Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
• Weight: 200 g (6.43 oz)
• Networking interface: (3) 10/100/1000 Ethernet ports
• Buttons: Reset
• Power method: Passive Power over Ethernet (48 V), 803.2at supported (supported voltage range: 44 to 57 V DC)
• Power supply: UniFi switch (PoE)
• Power save: Supported
• PoE Out: 48 V passthrough (pins 1, 2+; 3, 6-)
• Maximum power consumption: 7 W
• Maximum TX power:
  • 2.4 GHz: 20 dBm
  • 5 GHz: 20 dBm
• Antennas: (1) dual-band antenna, single-polarity
  • 2.4 GHz: 1 dBi
  • 5 GHz: 2 dBi
• Wi-Fi standards: 802.11 a/b/g/n/ac
• Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to four per radio
• Mounting: 1-gang electrical wall box (not included)
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
