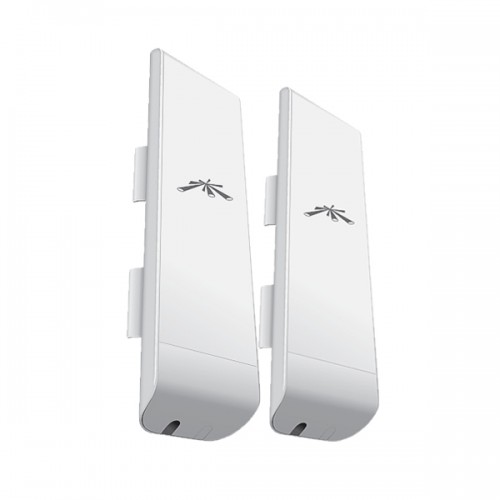

2x NanoStation M5: NSM5 5 GHz Hi-Power 2x2 MIMO Station, 2-Pack

2x UBNT NanoStation M5: 5 GHz Hi Power 2x2 MIMO AirMax TDMA Station, 2-Pack

Performance Breakthrough

150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

New Leading-Edge Industrial Design

The original NanoStation set the bar for the worlds first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Next-Gen Antenna Design

New antenna array designs featuring 16 dBi dual-polarity gain at 5 GHz and 11 dBi dual-polarity gain at 2.4 GHz. Both with optimized cross-polarity isolation and in a compact form-factor.

Dual Ethernet Connectivity

The new NanoStation M provides a secondary Ethernet port with software enabled PoE output for seamless IP video integration.

Intelligent PoE

Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48 V compliant through use of the instant 802.3af adapter.

AirOS V

Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

• Processor specs: Atheros MIPS 24KC, 400 MHz
• Memory information: 32 MB SDRAM, 8 MB Flash
• Networking interface: 2x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet interface
• Wireless approvals: FCC Part 15.247, IC RS210, CE
• RoHS compliance: Yes
• Enclosure size: 29.4 x 8 x 3cm
• Weight: 0.4 kg
• Enclosure characteristics: Outdoor UV stabalized plastic
• Mounting kit: Pole mounting kit included
• Max. power consumption: 8 Watts
• Power supply: 15 V, 0.8 A surge portection integrated PoE adapter included
• Power method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating temperature: -30°C to +80°C
• Operating humidity: 5 to 95% condensing
• Shock and vibration: ETSI300-019-1.4

Specifications of the integrated 2x2 MIMO antenna

• Frequency range: 4.9-5.9 GHz
• Gain: 14.6-16.1dBi
• Polarization: Dual linear
• Cross-pol isolation: 22 dB minimum
• Max. VSWR: 1.6:1
• H-pol beamwidth: 43 deg.
• V-pol beamwidth: 41 deg.
• Elevation beamwidth: 15 deg.
