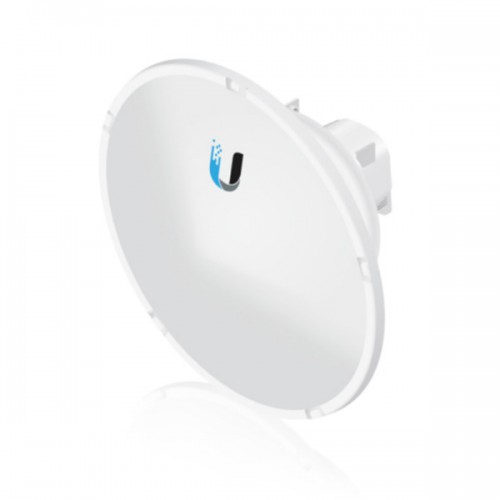

Ubiquiti AF-11G35 - 11 GHz airFiber Dish, 35 dBi

Ubiquiti AF-11G35 - 11 GHz airFiber Dish, 35 dBi

Ubiquiti offers the AF-11G35 antenna, specially designed for the AF-11FX radio, so that installation requires no special tools. The AF-11G35 comes preconfigured with V/H polarization, and can be configured to support +/- 45° slant polarization for improved noise immunity and SignaltoNoise Ratio (SNR), dependent on regulatory region.

Overview

Pair an airFiber(R) X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

Carrier-Class Construction

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

Plug and Play Integration

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.

Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

• Dimensions: 811 x 811 x 460 mm (31.9 x 31.9 x 18.1")
• Weight: 16.5 kg (36.38 lb)
• Frequency: 10.3 to 11.7 GHz
• Gain: 35 dBi
• HPOL beamwidth: 2.5°
• VPOL beamwidth: 2.5°
• Maximum VSWR: 2:1
• Wind survivability: 200 km/h (125 mph)
• Wind loading: 1538 N at 200 km/h
• Polarization:
• Default: H/V
• After rotating OMT: +/-45°
• Crosspol isolation: 35 dB
• Mounting: Uses the AF-5 mounting system
• Pattern regulatory: ETSI 302 217-4-2, Class 3 and FCC Cat. B
