TOUGHCable - LEVEL 1 Pro - 305m - outdoor

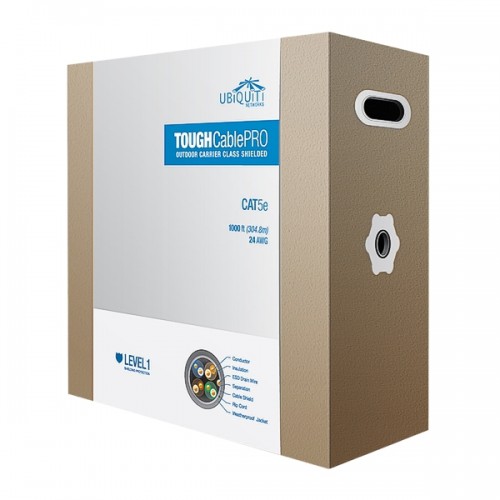

Ubiquiti Networks TOUGHCable LEVEL 1 PRO - 305m CAT5e Outdoor Carrier Class Shielded Ethernet Cable

Protect your networks from the most brutal environments with Ubiquitis industrial-grade shielded Ethernet
cable, TOUGHCable.

Increase Performance
Dramatically improve your Ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.

Extreme Weatherproof
TOUGHCables have been built to perform even in the harshest weather and environments.

ESD Damage Protection
Protect your networks from devastating electrostatic discharge (ESD) attacks.

Extended Cable
Support TOUGHCables have been developed to have increased power handling performance for extended cable run lengths.

ToughCable Connectors
Use ToughCable with Ubiquiti ToughCable Connectors

Specifications

• Cable: CAT5e, Shielded
• Ethernet Support: Up to 1 Gbps
• Conductor Wire Gauge: 24 AWG
• Conductor: Solid bare copper
• Conductor Diameter: 0.500+/-0.005 mm
• Insulation Type: Solid PE
• Insulation Thickness: AVG: 0.26mm, MIN: 0.25 mm
• Insulation Diameter: 1.04+/-0.03 mm
• Separation (Polyester Wrapping): Thick: 0.025mm, Extent: 20 mm
• Anti-Crosstalk: Divider None
• Cable Shield: (Aluminum Foil) Thick: 0.060 mm, Extent: 18 mm
• ESD Drain Wire: 0.4 CCS
• Rip Cord: Yes
• Jacket Material: PE
• Jacket Thickness: AVG: 0.50mm, MIN: 0.46 mm
• Jacket Outer Diameter: 6.0+/-0.30 mm
• Jacket Color: Gray
• Reference Standard: ISO/IEC 11801, TIA/EIA568B.2
