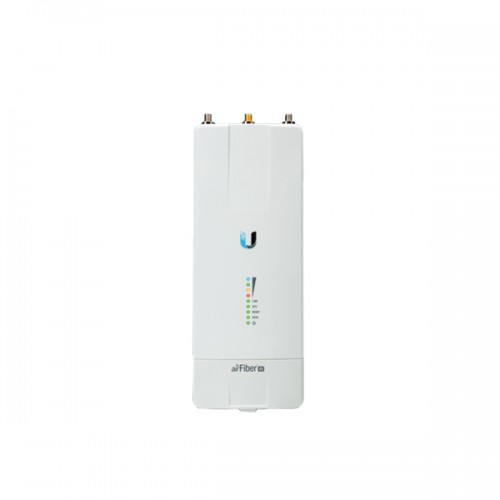

Ubiquiti AF-4X - airFiber X Licensed Backhaul Radio

Ubiquiti AF-4X - airFiber X Licensed Backhaul Radio

• Up to 500+ Mbps Real Throughput, Up to 200+ km Range
• Optimal Use of 4.9 GHz Radio Band for Public Safety Sector
• Ubiquitis INVICTUS(TM) Custom Silicon

- Please note: In some countries, the use of this product is restricted or not allowed. Please check with the appropriate authority in your country. -

Ubiquiti Networks introduces the airFiber(R) AF-4X, Ubiquitis first licensed spectrum radio designed for the public safety sector. It meets the growing need of broadband capacity and optimizes use of the 4.9 GHz radio band with its industry-leading spectral efficiency and TDD throughput.
The AF-4X allows you to customize airFiber backhaul links or upgrade existing Rocket(R) PointtoPoint (PtP) links.

Designed for the Public Safety Market

Deploy the high-performance and reliable AF-4X for municipal applications, including police, fire, and emergency medical services.

Mission-Critical Communications

The AF-4X covers the 4.9 GHz spectrum for public safety. Additional frequencies, from 4.7 GHz to 4.9 GHz, are supported in Europe and other regions (subject to local country regulations).
The AF-4X uses a proprietary radio communications protocol with AES-128 encryption to help ensure communication channels are secure.

Ultra-Low Latency with HDD Technology

The AF-4X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
• Weight: 0.35 kg (0.77 lb)
• RF Connectors:
  • (2) RP-SMA Weatherproof (CH0, CH1)
  • (1) SMA Weatherproof (GPS)
• GPS Antenna: External, Magnetic Base
• Power Supply: 24V, 1A PoE Gigabit Adapter (included)
• Power Method:
  • Passive Power over Ethernet
  • Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
• Max. Power Consumption: 12 W
• Supported Voltage Range: 19-29 V DC
• Mounting:
  • airFiber X Mount (Rocket Mount compatible)
  • GPS Pole Mount (included)
• Certifications: CE, FCC, IC
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)

Networking Interface

• Data Port: (1) 10/100/1000 Ethernet Port
• Management Port: (1) 10/100 Ethernet Port

System

• Processor: INVICTUS IC
• Maximum Throughput: 500+ Mbps
• Maximum Range: 200+ km
• Encryption: 128-bit AES
• OS: airOS(R) F
• Wireless Modes: Master/Slave

Radio

• Frequency Range:
  • FCC: 4940 - 4990 MHz
  • IC: 4940 - 4990 MHz
  • ETSI: 4700 - 4990 MHz
  • Other Regions: 4700 - 4990 MHz
• Max. Conducted TX Power: 29 dBm2 (dependent on Regulatory Region)
• Frequency Accuracy:
  • +/- 2.5 ppm without GPS Synchronization
  • +/- 0.2 ppm with GPS Synchronization
• Channel Bandwidth:
  • 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable3
  • Programmable Uplink and Downlink Duty Cycles
