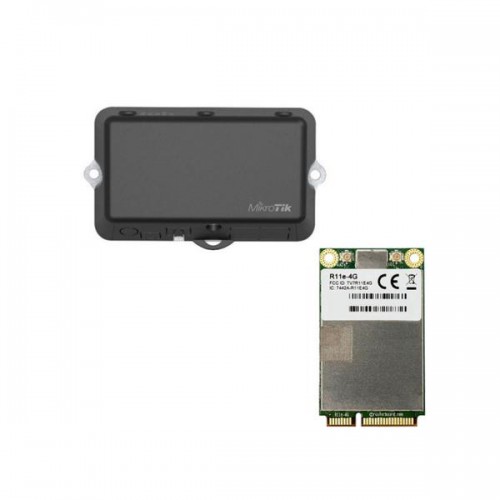

MikroTik RB912R-2nD-LTm&R11e-4G - LtAP mini 4G kit with 650 MHz CPU, 64 MB RAM

MikroTik RB912R-2nD-LTm&R11e-4G - LtAP mini 4G kit with 650 MHz CPU, 64 MB RAM

The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G (international version only), 3G and 4G (LTE) connectivity. It is also available separately, without the modem, so you can use your own.

Connect to the LtAP minis built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 10-57 V PoE-in by Ethernet port, DC jack and microUSB.

Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

LtAP mini 4G kit (RB912R-2nD-LTm&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800 MHz), 7 (2600 MHz), 20 (800 MHz) and 31 (450 MHz), as well as LTE TDD bands 41n (2500 MHz), 42 (3500 MHz) and 43 (3700 MHz).

• Product code: RB912R-2nD-LTm&R11e-4G

• CPU: QCA9531 650 MHz

• Size of RAM: 64 MB

• Storage: 16 MB

• 10/100 Ethernet ports: 1

• Wireless: Built-in 2.4 GHz 802.11b/g/n, dual-chain

• Wireless regulations: Specific frequency range can be limited by country regulations

• Antenna beam width: 360°

• Wireless antenna gain: 1.5 dBi

• GPS: Built-in MT3337V, with u.FL RF connector (external antenna required)

• PoE in: Yes

• SIM slot: 2 mini SIM slots

• LTE category: 4 (150 Mbps downlink, 50 Mbps uplink)

• LTE antenna gain: 3.5 dBi (with uFL connector)

• Serial port: RS232 (shared with GPS port)

• Supported input voltage: PoE in: 10 - 57 V (passive PoE and 802.3af/at with unshielded cable); DC jack: 8 - 30 V; MicroUSB: 5 V

• Dimensions: 139 x 77 x 28,5 mm

• Operating temperature: -40°C to +70°C tested

• Operating system: RouterOS, License level 4

• Max. power consumption: 9 W
