MikroTik Light Head Grid RBLHG-5nD

MikroTik Light Head Grid RBLHG-5nD

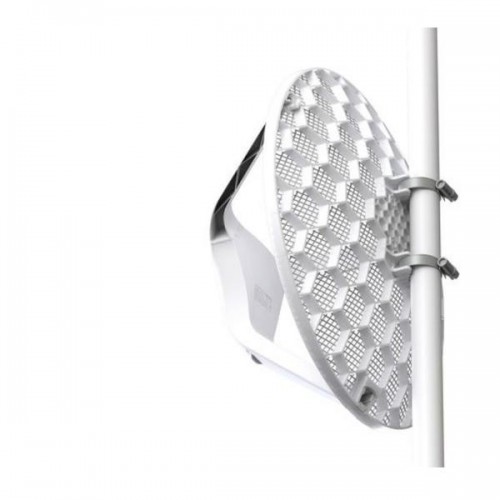

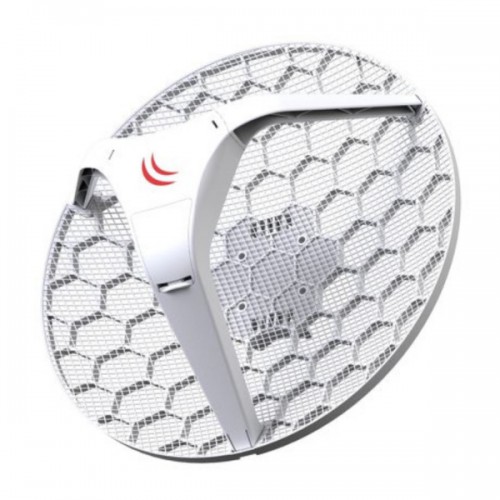

The Light Head Grid (LHG) is a compact and light
wireless device with an integrated 24.5 dBi grid antenna at a
revolutionary price. It is perfect for point-to-point links or for use
as a CPE at longer distances. The grid design ensures protection against
wind, and the fact that the antenna element is built into the wireless
unit means no loss on cables.

MikroTik RouterOS version 5.x level 3

• Typical setups: WISP CPE, wireless point 2 point bridge, DSL gateway
• Licence level 3
• Free upgrades to MikroTik RouterOS version 6.x
• Licence never expires
• Licence valid for one installation
• Unlimited number of interfaces
• Support for wireless station/client and point-to-point setups (no access point)
• Enhanced Wi-Fi performace with MikroTik Nstreme and MikroTik Nv2 with TDMA support
• RIP and OSPF and BGP* support (*no BGP on i386 version)
• 1 EoIP tunnel
• 1 PPPoE tunnel
• 1 PPTP tunnel
• 1 L2TP tunnel
• 1 OVPN tunnel
• 1 VLAN interface
• 1 active hotspot user
• Up to 10 active MikroTik user manager sessions

Technical specifications

• 600 MHz CPU
• 64 MB RAM
• Storage: 16 MB Flash
• 1x 10/100 Ethernet port
• Dual-chain 5 GHz 802.11a/n (AR9344)
• Operating frequency: 5150 - 5875 MHz
• Antenna gain: 24.5 +/- 0.5 dBi
• Antenna beam width: 7°
• Supported input voltage: 11 - 30 V over passive PoE
• Wind survivability: 205 km/h
• Wind loading: 186N (at) 205 km/h
• Cross polar: 15 dBi
• Port-to-port isolation: 20 dB
• Front-to-back ratio: 25 dB
• Operating temperature: -40°C to 70°C
• Operating humidity: 5 to 95% noncondensing
• Shock and vibration: ETSI300-019-1.4
• ETSI specification: EN 302 326 DN2
• Dimensions:

  • Unit: 391 x 222 mm
  • Package 450 x 450 x 145 mm


• Weight

  • Unit: 560 g
  • Package: 1.98 kg


• Max. power consumption: 6 W
• Incl. MikroTik RouterOS licence level 3

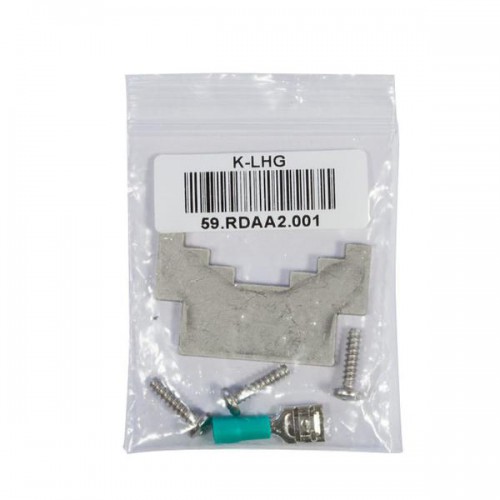

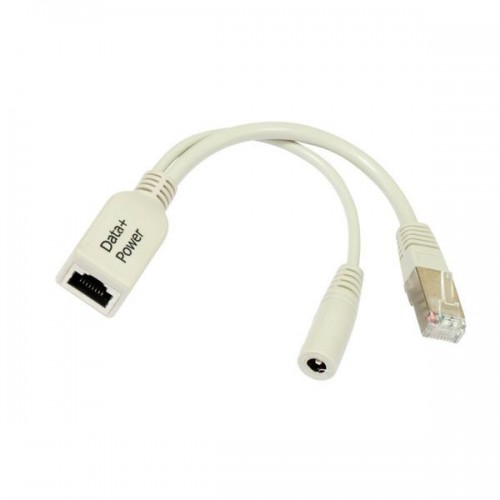

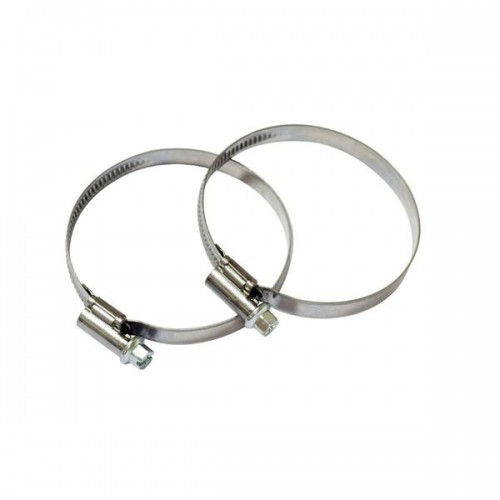

• Incl. metal rings, PoE injector
