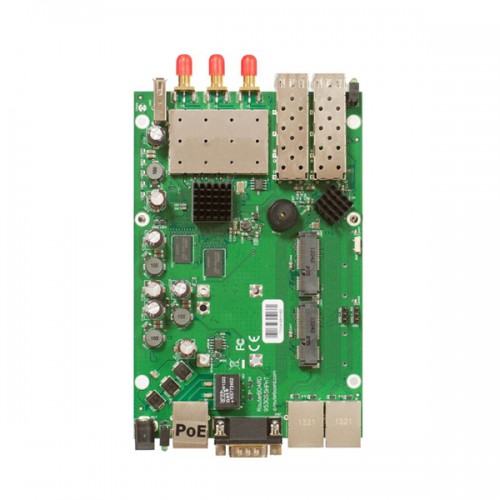

MikroTik RouterBOARD 953GS-5HnT-RP, 3x3 MIMO, 5 GHz

MikroTik RouterBOARD 953GS-5HnT-RP, 3x3 MIMO, 5 GHz

RouterBOARD 953GS-5HnT-RP is MikroTik's first product with 5 GHz 3x3 MIMO Triple Chain support. It has a powerful (up to 1600 mW!) Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.

RB953GS-5HnT is equipped with a new Scorpion 720 MHz CPU, 128 MB RAM and three Gigabit Ethernet ports to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.

Handy additions are two miniPCI-express slots and two SIM slots for multiple 3G/4G connections or wireless expansion.

The unit comes with a preinstalled RouterOS Level5 license.

• Product code: RB953GS-5HnT-RP
• CPU nominal frequency: 720 MHz
• CPU core count: 1
• Size of RAM: 128 MB
• 10/100 Ethernet ports: None
• 10/100/1000 Ethernet ports: 3
• MiniPCI slots: 0
• MiniPCI-e slots: 2
• Wireless chip model: QCA9558-AT4A-R
• Wireless standards: 802.11a/n
• Number of USB ports: 1
• Power jack: 1
• Supported input voltage: 8 - 30 V
• PoE out: No
• PoE in: Yes
• Voltage monitor: Yes
• CPU temperature monitor: No
• PCB temperature monitor: Yes
• Dimensions: 183 x 105 x 24 mm
• Operating system: RouterOS L5
• Operating temperature range: -40°C to +70°C
• License level: 5
• Antenna gain dBi: No
• Current monitor: No
• CPU: QCA9558-AT4A-R
• Max. power consumption: 25 W
• SFP ports: 2
• SFP+ ports: None
• USB slot type: USB type A
• Supported voltage: PoE in: 8-30 V; power jack: 8-30 V DC
• Number of chains: 3
• Serial port: RS232
