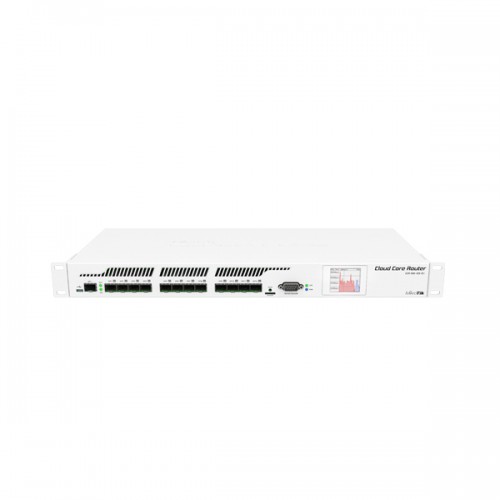

MikroTik Cloud Core Router CCR1016-12S-1S+, 12x SFP, 1x SFP+, 16-core CPU

MikroTik Cloud Core Router CCR1016-12S-1S+, 12x SFP, 1x SFP+, 16 core CPU

The CCR1016 is an industrial-grade router with a cutting-edge 16-core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port. The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

• 12x SFP ports for 1 Gigabit connectivity
• 1x SFP+ port for 10 Gigabit connectivity
• 16 core Tilera CPU, 1.2 GHz clock per core
• 12 Mbytes total on-chip cache
• State-of-the-art TILE GX architecture
• Ports directly connected to CPU
• 1U rackmount case
• Color touchscreen LCD display
• Two power supplies for redundancy

• CPU: Tilera Tile-Gx16 CPU (16 cores, 1.2 GHz per core)
• Memory: 2 GB built-in RAM
• SFP: (12) SFP ports and (1) SFP+ port
• Expansion: USB port
• Storage: 128 MB onboard NAND
• Serial port: (1) serial RJ45 port
• Extras: Beeper; voltage, current and temperature monitoring; fan; SD card slot
• Power options: 2x IEC C14 standard PSU units built in, 110/220 V
• Dimensions: 443 x 197 x 44 mm
• Temperature: Max. ambient temperature 50° (at) 1.2 GHz; 70° (at) 1 GHz CPU core frequency
• OS: MikroTik RouterOS v6, Level 6 license

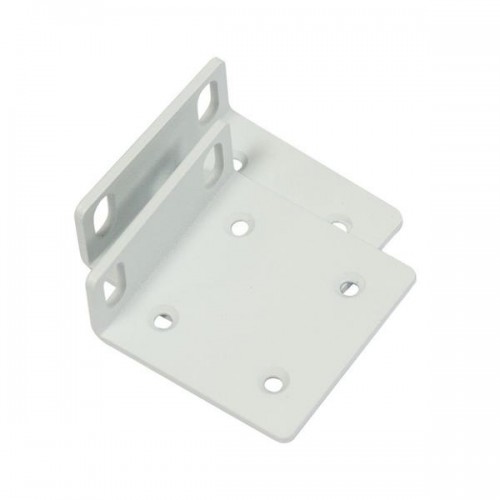

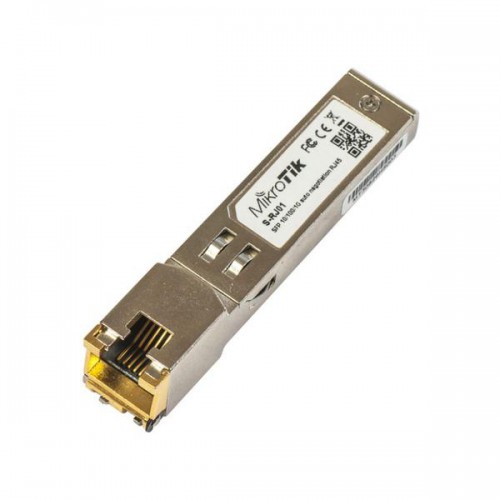

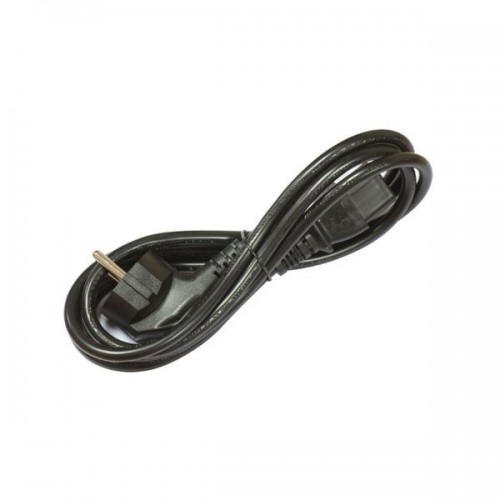

• Included: CCR1016-12S-1S+: router in a 1U case with LCD, 2x IEC power cables, RJ45 SFP copper module, rackmount ears
