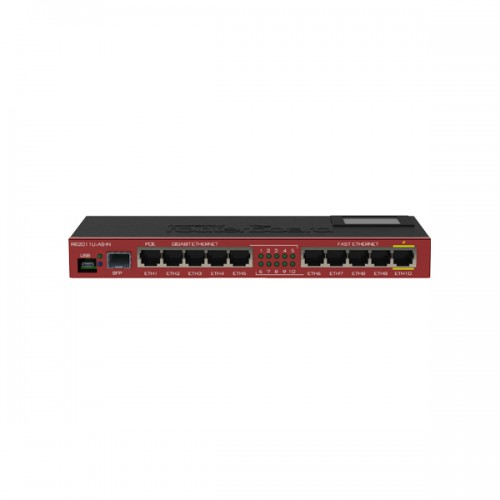

MikroTik RouterBoard RB2011UiAS-IN

MikroTik RouterBoard RB2011UiAS-IN

The RB2011 is a low cost multi port device series. It is designed for an indoor use and available in many different cases with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced Quality of Service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-IN, in comparison with the RB2011L series, not only has 5x Gigabit LAN ports and 5x Fast Ethernet LAN ports, but also has a RJ45 serial port, a microUSB port and more RAM (128 MB instead of 64 MB). Also, it has RouterOS L5 license (instead of L4) and a nice touchscreen LCD for configuration. An SFP cage is also present (SFP module not included).

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).

There is a PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500 mA.

RouterBOARD 2011UiAS-IN comes with a desktop enclosure, an LCD panel and a power supply.

A wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

• Product code: RB2011UiAS-IN
• CPU nominal frequency: 600 MHz
• SFP DDMI: Yes
• CPU core count: 1
• Size of RAM: 128 MB
• 10/100 Ethernet ports: 5
• 10/100/1000 Ethernet ports: 5
• MiniPCI slots: 0
• MiniPCIe slots: 0
• Wireless chip model: AR9344-DC3A-R
• Number of USB ports: 1
• Power jack: 1
• 802.3af support: No
• PoE in: Yes
• PoE out: No
• Supported input voltage: 9 - 28 V
• Voltage monitor: Yes
• CPU temperature monitor: No
• PCB temperature monitor: Yes
• Dimensions: 214 x 86 mm for PCB
• Operating system: RouterOS
• Operating temperature range: -35°C to +65°C
• License level: 5
• Antenna gain dBi: No
• Current monitor: No
• CPU: AR9344-DC3A-R
• SFP ports: 1
• SFP+ ports: 0
• USB slot type: microUSB type AB
• Number of chains: 0
• Serial port: RJ45
