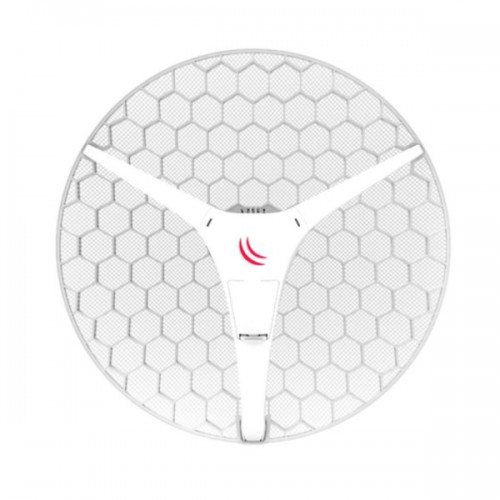

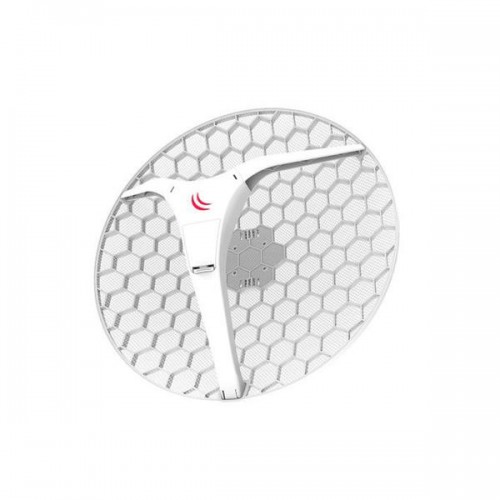

MikroTik LHG XL 5HP - RBLHG-5HPnD-XL with 27 dBi 5 GHz antenna, dual-chain wireless

MikroTik LHG XL 5HP - RBLHG-5HPnD-XL with 27 dBi 5 GHz antenna, dual-chain wireless

MikroTik is adding two new models to the LHG product family, the LHG HP5 (high
power) and LHG XL HP5 (extra large, high power). LHG HP5 comes with two
times more output power than our regular LHG 5 - up to 630 mW - and is
designed to reach up to 60% longer distances.

The LHG XL HP5 has a bigger 27 dBi antenna with 630 mW TX output power, designed to reach up to 40 km in point-to-point setups at full speed. All units come with a PoE injector, power supply and pole mount, ready to be deployed.

Included

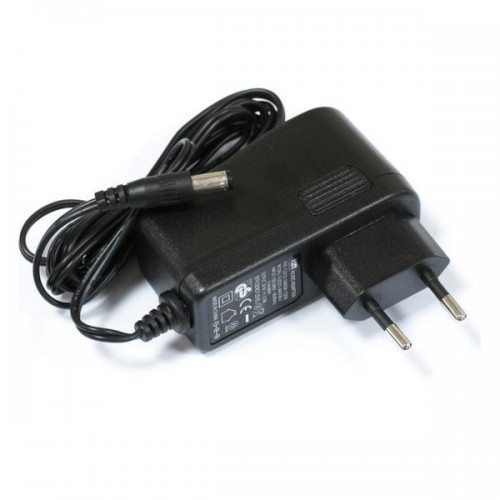

• 24 V/0.38 A power adapter

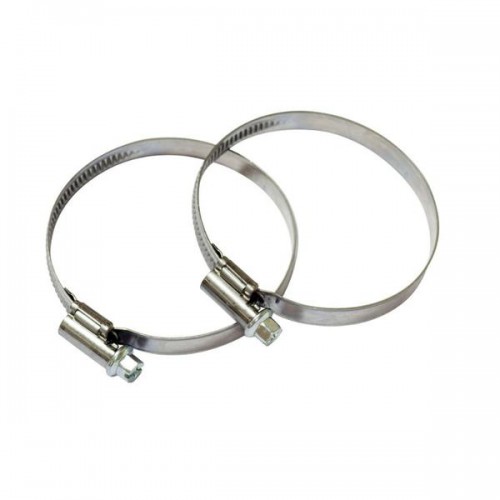

• 2x metal rings

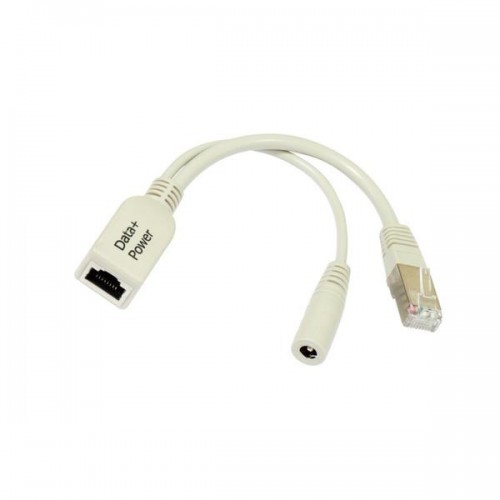

• PoE injector

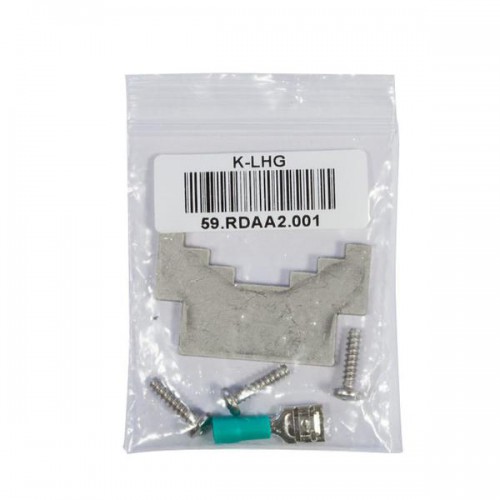

• K-LHG kit

Specifications

• CPU nominal frequency: 600 MHz
• Size of RAM: 64 MB
• Storage: 16 MB Flash
• 10/100 Ethernet ports: 1
• Wireless: Built-in 5 GHz 802.11a/n, dual-chain
• Wireless chip model: AR9344
• Operating frequency: 5150 - 5875 MHz
• Antenna gain: 27.0 +/- 0.5 dBi
• Antenna beam width: 6,4°
• Cross polar: 21 dBi
• Port-to-port isolation: 18 dB
• Front-to-back ratio: 35 dB
• Return loss: 14 dB
• VSWR: 1.5:1
• PoE in: Yes
• Supported input voltage: 10 - 28 V (passive PoE)
• Wind loading: 186N (at) 205 km/h
• Operating temperature: -40°C to 70°C
• Operating humidity: 5 to 95% non-condensing
• Shock and vibration: ETSI300-019-1.4
• ETSI specification: EN 302 326 DN2
• Dimensions:
• Unit: 550 x 245 mm
• Package: 585 x 595 x 138 mm
• Weight:
• Unit: 945 g
• Package: 2.99 kg
• Max. power consumption: 7 W
