MikroTik PL7411-2nD - PWR-LINE AP (supports power over datalines) with 650 MHz CPU

MikroTik PL7411-2nD - PWR-LINE AP (supports power over datalines) with 650 MHz CPU

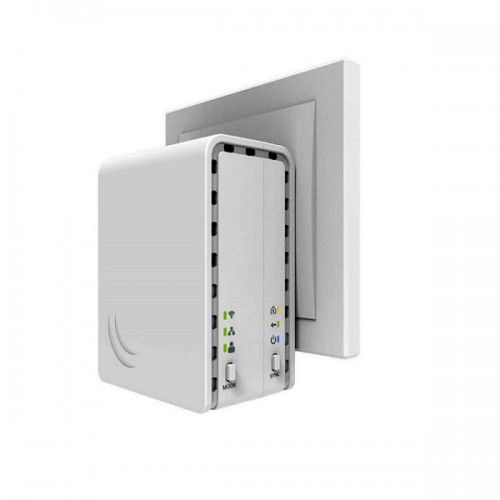

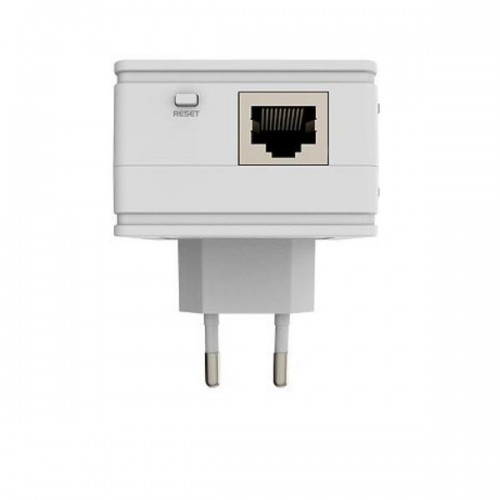

The PWR-LINE AP is a wireless access point with a single Ethernet port, a built-in 802.11b/g/n Wi-Fi radio and capability to connect to other PWR-LINE devices through the electrical lines in your premises.

Since the device runs the same software as all other MikroTik products, it opens up a wide array of functions, all made possible with the extensive feature set present in RouterOS.

You either use the default configuration which allows for a hassle free and quick installation, or dive into the rich configuration options, set a firewall or usage limitations, make virtual access points for guests and more.

When using multiple PWR Line AP devices in your network, you can even manage them all with the CAPsMAN access point manager feature, which can be run on your main MikroTik router.

Usage example

The PWR-Line AP is a small Wi-Fi access point, made as an accessory to your existing network, for places where your signal or your cable is unable to reach.

Especially useful in homes with thick walls where you can extend the Wi-Fi coverage to those rooms where the signal is poor without having to re-wire your house.

Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises. They will link together through the power lines. You can install up to eight PWR-LINE devices to further build your network.

• Product code: PL7411-2nD
• CPU: QCA9533
• CPU nominal frequency: 650 MHz
• PLC chipset: AR7420
• Size of RAM: 64 MB
• Memory: 16 MB Flash
• 10/100 Ethernet ports: 1
• Wireless: Built-in 2.4 GHz 802.11b/g/n, dual-chain
• Wireless regulations: Specific frequency range may be limited by country regulations
• Antenna gain: 1.5 dBi
• Antenna beam width: 360°
• Wireless chip model: QCA9533
• Supported input voltage: 100 - 240 V
• Dimensions: 50 x 68 x 33 mm
• Operating temperature: -20°C to +60°C
• License level: 4
• Operating system: RouterOS
• Max. power consumption: 7 W
• Power plug type: Type C (commonly used in Europe, South America and Asia)
