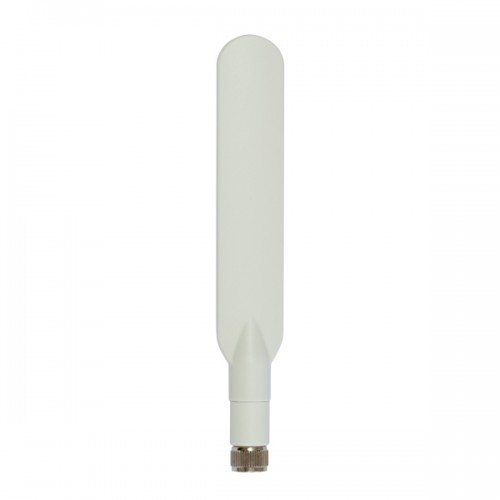

Mikrotik RouterBOARD ACOMNIRPSMA, 2.4 GHz 5 dBi dipole antenna

Mikrotik RouterBOARD ACOMNIRPSMA, 2.4 GHz 5 dBi Dipole antenna

Now we offer 2.4 GHz 5 dBi dipole antennas with RP-SMA connectors! Take a BaseBox2 and simply attach two of those antennas to the connectors
of the BaseBox2 to have a 2x2 MIMO 2.4 GHz AP! By this you can have a 2.4 GHz OmniTik, ideal for outdoor campus areas, for example, campings or trailer parks. The antennas are waterproof, so you can use the BaseBox without the top cover if both antennas are properly attached.

• 2.4 - 2.5 GHz ISM band
• IEEE 802.11b/g/n wireless
• Directional and multipoint application
• Weatherproof and corrosion resistant
• Ideal for use with Basebox product series

Electrical Specifications

• Frequency range: 2400~2500 MHz
• V.S.W.R:≤ 2.0:1
• Antenna type: PCB
• Gain: 5.0 +/- 0.3 dBi
• Polarization: Linear
• Horizontal beam with: 360°
• Impedance: 50 ohms
• Connector: RP-SMA male

Mechanical Specifications

• Dimension: 147 mm
• Weight: 30 g
• Housing: ABS
• Hinge: ABS
• Color: White
• Operating temperature: -30°C to +85°C
• Storage temperature: -30°C to +85°C
