MikroTik RouterBOARD 800, Level 6, 800 MHz

MikroTik RouterBOARD 800 (RB800, RB/800), Level 6, 800 MHz

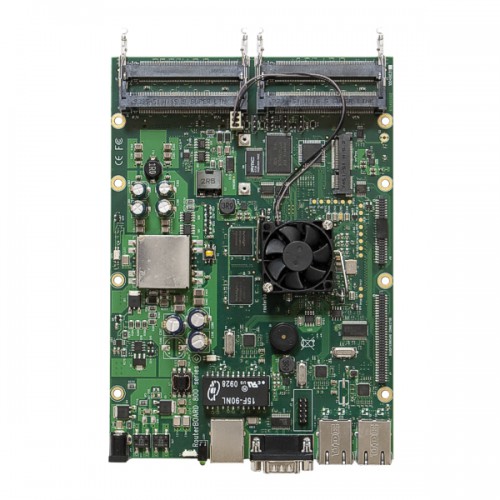

The RB800 is an advanced high-performance wireless platform. It has four miniPCI slots, three Gigabit Ethernet ports, two daughterboard connectors, a miniPCI-e slot and a Compact Flash slot. The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all. This is the new definition of wireless networking power.

Combined with RouterOS, RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager - with many expansion options.

• CPU: MPC8544 800 MHz
• Memory: 256 MB DDR2 SDRAM onboard memory
• Boot loader: RouterBOOT

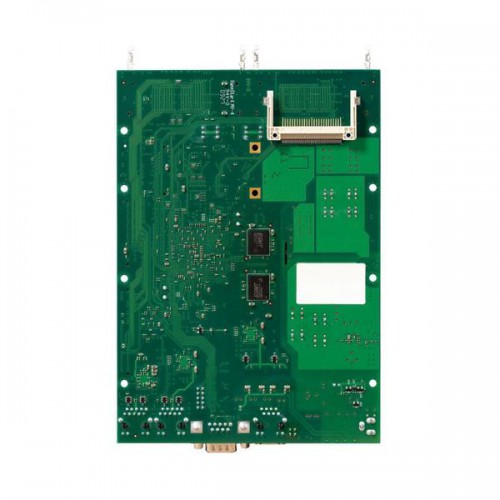

• Data storage: NAND memory chip, CF slot on back
• Ethernet: 3x 10/100/1000 Mbit/s Ethernet ports with Auto-MDI/X
• miniPCI: 4x miniPCI, 1x miniPCI-e
• Expansion: Regular PCI daughterboard port, PCI-e daughterboard port
• Extras: Reset switch, beeper, 4x fan headers (JP1, JP3 = 3.3 V, JP2, JP4 = 5.5 V)
• Serial port: 1x DB9 RS232C asynchronous serial port, one serial port header
• LEDs: Power, 1x user LED
• Power options: Power over Ethernet: 36-56 V DC (including power over datalines)
• Power jack: 10-56 V DC
• Dimensions: 14 x 20 cm (5.51 in x 7.87 in), 285 g
• Operating system: MikroTik RouterOS v4, Level6 license
• Two port throughput: 276000 pps with small packets, and wire speed throughput on big packets
