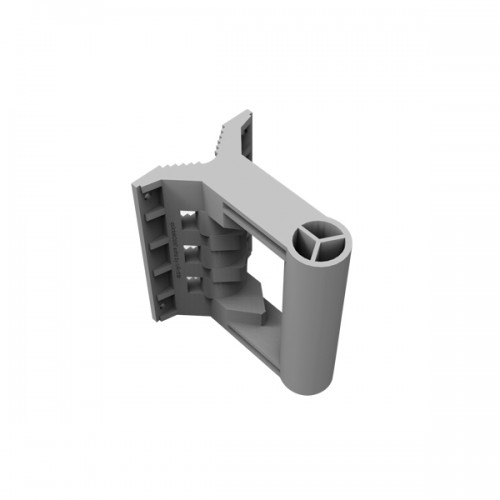

The quickMOUNT extra is an advanced wall mount adapter for large point-to-point and sector antennas.

You can mount it on the wall or use it as an adapter from a large diameter pole to a small-size antenna mounting clip ensuring reliable fitment. The quickMOUNT extra offers the possibility to turn the antenna within 190°.

The quickMOUNT extra is compatible with long-range heavy antennas like the 30 dBi parabolic dish mANT 30 or the 19 dBi sector mANT 19s.

You can use the quickMOUNT extra with any pole-mountable device with a weight less than 8 kg.

• simple and low cost
• supports mANT, SXT, Omnitik, BaseBox, DynaDish or any other pole-mountable device

The adapter is very durable due to its special material composite - anvilNITE(TM).

Specifications

• Product code: QME
• Dimensions: 102 x 135 x 150 mm
• Tube diameter: 35 mm
• Max. tube diameter to which the mount can be attached: 70 mm
• Maximum antenna weight: 8 kg
• Maximum wind load: 100 N
• Turn angle for MikroTik products: 190°
• Compatible devices: Any pole-mounted antenna with a weight under 8 kg
• Mounting holes: 4 (option to add 2 more)
• Operational temperature range: +/-40°C
• Material: anvilNITE(TM)
