Ubiquiti Networks AF-2X - Carrier Backhaul Radio

Ubiquiti Networks AF-2X - Carrier Backhaul Radio

Overview
Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber(R) X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti(R) antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket PointtoPoint (PtP) links.

The airFiber X is available in three frequency bands:

• 2.4 GHz, model AF-2X
• 3 GHz, model AF-3X
• 5 GHz, model AF-5X

Engineered for Performance
Ubiquitis INVICTUS(TM) custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
Our INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and higher delivered throughput.
The airFiber X features industryleading spectral efficiency of up to 13.67 bps/Hz, linerate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT(TM)) for up to 200+ km in range.

Backhaul - 2.4 GHz
The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF2X increases both range and delivered throughput in this popular band.

Optimal Operation in Unlicensed Bands
Channel width flexibility* allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments.

• AF-2X: 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MH

* Channel widths may vary according to country/region regulations.

• Model: AF-2X
• Frequency: 2.4 GHz
• Antenna compatibility: AF-2G24-S45
• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
• Weight: 0.35 kg (0.77 lb)

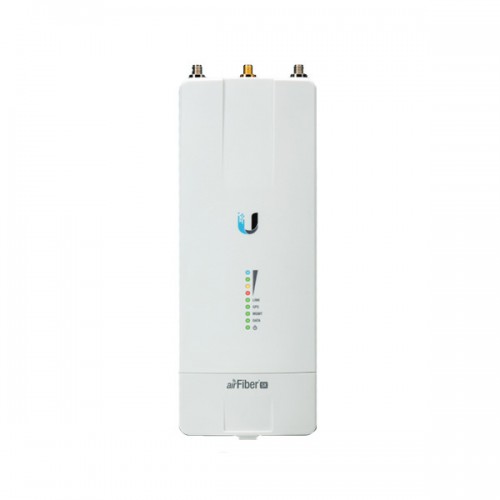

• RF Connectors:
  • (2) RP-SMA weatherproof (CH0, CH1)
  • (1) SMA weatherproof (GPS)
• GPS Antenna: External, magnetic base
• Power supply: 24V, 1A PoE Gigabit adapter (included)
• Power method:
  • Passive Power over Ethernet
  • Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
• Max. power consumption: 17 W (at) max. power/duty cycle
• Supported voltage range: 19 - 29 V DC
• Mounting:
  • airFiber X mount (Rocket Mount compatible)
  • GPS pole mount (included)
• Certifications: CE, FCC, IC
• Operating temperature: -40°C to 55°C (-40°F to 131°F)

Networking Interface

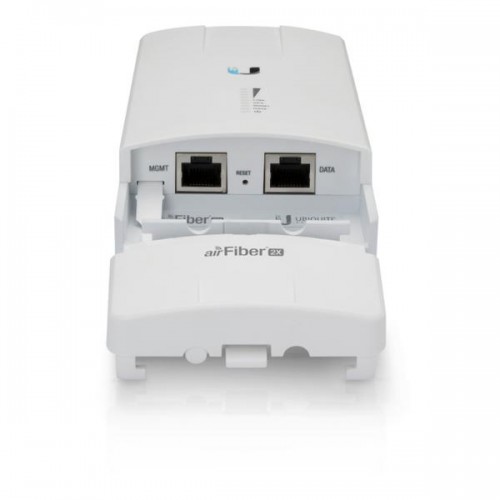

• Data port: (1) 10/100/1000 Ethernet port
• Management port: (1) 10/100 Ethernet port

System

• Processor: INVICTUS IC
• Maximum throughput: 525 Mbps
• Maximum range: 200+ km
• Encryption: 128-bit AES
• OS: airOS F
• Wireless modes: Master/Slave

Radio

• Frequency range: 2400 - 2500 MHz (dependent on regulatory region)
• Max. conducted TX power: 30 dBm (dependent on regulatory region)
• Frequency accuracy:
  • +/- 2.5 ppm without GPS Synchronization
  • +/- 0.2 ppm with GPS Synchronization
• Channel bandwidth:
  • 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable
• Programmable uplink and downlink duty cycles
• Independently programmable TX and RX frequencies
