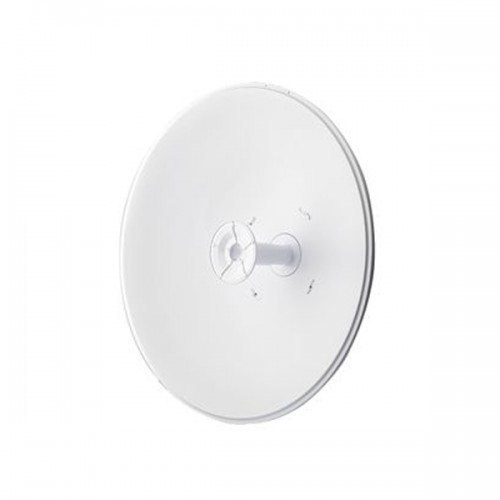

Ubiquiti Networks airMAX(R) 2x2 PtP Bridge Dish Antenna, RD-5G30-LW

Ubiquiti Networks airMAX(R) 2x2 PtP Bridge Dish Antenna, RD-5G30-LW

Pair a RocketDish(TM) antenna with a Rocket(TM) base station to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).

The RocketDish is available in the following frequency models:

• 2.4 GHz
• 3 GHz
• 5 GHz

Powerful Performance

The RocketDish antenna delivers 2x2, dual-polarity performance. In the data sheet you can find an example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX(R) Sector with Rocket delivers bandwidth to the ISPs customers.

Carrier-Class Construction

Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial strength hardware for outdoor application use.

Plug and Play Integration

RocketDish antennas and Rocket base stations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketDish and Rocket for your PtP application.

Innovative Mechanical Design

• Secure pole-mounting: The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
• Convenient installation: The bubble level allows for easy alignment.
• Precision elevation adjustment: Use this new feature to quickly fine-tune and adjust the elevation

Weatherproof Design

• Protective shroud: The shroud protects the cables and connectors from natures elements.
• Mounting hardware: Made of galvanized steel that is powder-coated for superior corrosion resistance
• Fasteners: GEOMET-coated for improved corrosion resistance when compared with zinc plated fasteners.

The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:

• Lightweight yet robust components lessen the load.
• The extended depth of the dish reflector rejects noise interference in co-location deployments.
• The design of the mounting bracket allows for ease of installation on a pole or tower.

• Dimensions: 650 x 650 x 386 mm
• Weight: 7.4 kg
• Frequency range: 5.1 - 5.9 GHz
• Gain: 30 dBi
• HPOL beam width: 5.8° (3 dB)
• VPOL beam width: 5.8° (3 dB)
• F/B ratio: 30 dB
• Max. VSWR: 1.6:1
• Wind loading: 790 N (at) 200 km/h
• Wind survivability: 125 mph
• Polarization: Dual-linear
• Cross-pol isolation: 35 dB Min
• ETSI sspecification: EN 302 326 DN2
• Mounting: Universal pole mount, Rocket bracket, and weatherproof RF connectors included
