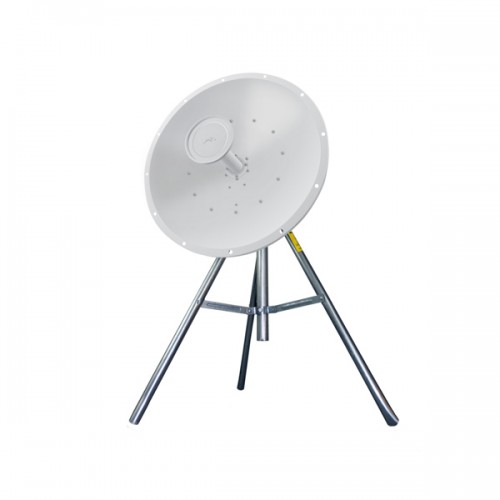

UBNT RocketDish 5G-30 - 5 GHz AirMax 2x2 MIMO PtP Dish Antenna
Instantly pair with Rocket M5 to create powerful 2x2 MIMO PtP Bridging applications. Mating bracket and weatherproof RF jumpers included.
- Frequency range: 4.9 - 5.90 GHz
- Gain: 28.0 - 30.25 dBi
- Polarization: Dual linear
- Cross-pol isolation: 35 dB min
- Max VSWR: 1.4:1
- Hpol beamwidth (6 dB): 137 deg.
- Vpol beamwidth (6 dB): 118 deg.
- Elevation beamwidth: 8 deg.
- Electrical downtilt: 4 deg.
- ETSI specification: EN 302 326 DN2
- Diameter: 65 cm
- Weight: 1.1 kg
- Windloading: 120 mph
