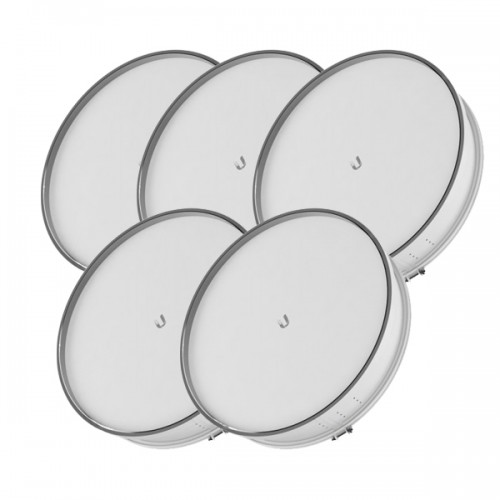

UBNT PBE-5AC-400-ISO - 5 GHz airMAX(R) ac Bridge, 5-Pack

Ubiquiti Networks PBE-5AC-400-ISO - 5 GHz airMAX(R) ac Bridge with RF Isolated Reflector, 5-Pack

• Uniform Beamwidth maximizes Noise Immunity
• Integrated Isolator Design improves RF Isolation
• High-Speed Processor for Superior Performance

Ubiquiti Networks launches the PowerBeam(TM) ac ISO, an airMAX ac Bridge that is ideal for deployments requiring maximum performance and RF isolation.

Improved Noise Immunity
The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Radio Design
Ubiquitis InnerFeed(TM) technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Superior Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquitis airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM – a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mbps real TCP/IP throughput – up to triple the throughput of standard airMAX products.

Models
Using airMAX ac technology, the PowerBeam ac ISO supports up to 450+ Mbps real TCP/IP throughput.

• PBE-5AC-300-ISO: 5 GHz, 22 dBi, 300 mm
• PBE-5AC-400-ISO: 5 GHz, 25 dBi, 400 mm

System and Regulatory/Compliance

• Processor Specs: Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2, 16 MB Flash
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes

Physical/Electrical/Environmental

• Dimensions: 459 x 459 x 261 mm (18.07 x 18.07 x 10.28\")
• Weight: 3.22 kg (7.10 lb)
• Power Supply: 24 V, 0.5 A Gigabit PoE
• Power Method: Passive PoE (pairs 4, 5+
