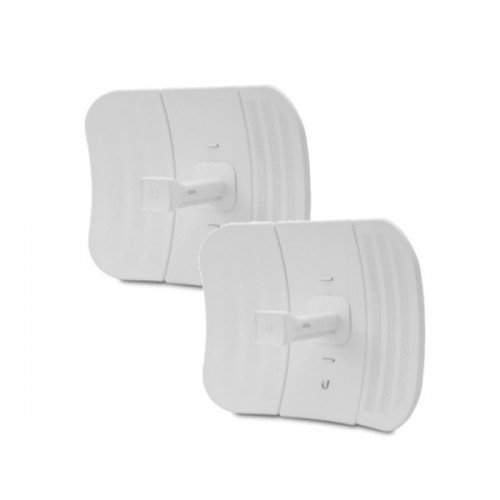

Ubiquti Networks LBE-M5-23-2P - LiteBeam M5, 23 dBi, 5 GHz (2-Pack)

Ubiquti Networks LBE-M5-23-2P - LiteBeam M5, 23 dBi, 5 GHz (2-Pack)

The LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti
Networks. The LBE-M5-23 was designed to be an affordable
cost/performance solution for long-distance, wireless broadband
bridging. It operates in the worldwide, license-free 5 GHz frequency
range and features high performance of up to 100+ Mbps in real outdoor
throughput and an incredible range of up to 30+ km.

The LBE-M5-23 combines proprietary hardware and software technologies to deliver its
breakthrough combination of throughput and range with cost-effective
value. Its InnerFeed technology integrates the entire radio system into
the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol
enhances network performance and scalability.

The LBE-M5-23 also
features a unique ball joint mounting system that provides 3-axis
adjustment flexibility for versatile mounting options. The mounting
system, coupled with the built-in bubble level, enables quick and easy
alignment.

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time
Division Multiple Access (TDMA) protocol allows each client to send and
receive data using pre-designated time slots managed by an intelligent
AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency.
Compared to other systems in its class, the LBE-M5-23 delivers superior
performance in reduced latency, throughput, and scalability.

• Intelligent QoS: Priority is given to voice/video for seamless access.
• Scalability: High capacity and scalability.
• Long Distance: Capable of high-speed, 30+ km links.

Quick Snap-and-Lock Assembly
The all-new mechanical design makes assembling and disassembling the LBE-M5-23 – literally – a snap. No tools are required.

Physical / Electrical / Environmental

• Dimensions: 362 x 267 x 184 mm (14.25 x 10.51 x 7.24")
• Weight: 750 g (24.11 oz)
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 176.86 N (at) 200 km/h (39.76 lbf (at) 125 mph)
• Enclosure Characteristics: Outdoor UV Stabilized Plastic
• Mounting Kit: Pole Mounting Kit (included)
• Max. Power Consumption: 4W
• Power Supply: 24 V, 0.2 A PoE Adapter (included)
• Power Method: Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Shock and Vibration: ETSI300-019-1.4
• ETSI Specification: EN 302 326 DN2

System Information

• Processor Specs: MIPS 74K
• Memory: 64 MB
• Networking Interface: (1) 10/100 Ethernet Port

Regulatory / Compliance Information

• Wireless Approvals: FCC, IC, CE
• RoHS Compliance: Yes

Antenna Information

• Operating Frequency
  • Worldwide: 5150 – 5875 MHz
  • USA: 5725 – 5850 MHz
• Output Power: 25 dBm
• Gain: 16 dBi
• Max. VSWR: 1.5:1
