Ubiquiti Networks UAP-AC-SHD - 802.11ac Wave 2 Access Point with Dedicated Security Radio

Ubiquiti Networks UAP-AC-SHD - 802.11ac Wave 2 Access Point with Dedicated Security Radio

• Simultaneous dual-band 4x4 multi-user MIMO
• Dedicated security radio with persistent threat management
• Real-time spectrum and airTime(TM) utilization engine

Scalable Enterprise Wi-Fi Management

The UniFi(R) Ecosystem enables the system integrator to effectively and
efficiently create wireless network designs of any size, from small to
large, with the potential for unlimited scalability.

The built-in, dedicated security and monitoring radios of the UniFi AC
SHD (Secure High Density) AP provides visibility into site performance,
channel planning, and local interferers, allowing the integrator to
properly evaluate performance and quickly respond to changing
interference and security threat landscapes.

Easily accessible through any standard web browser and the UniFi mobile
app (iOS or Android), the UniFi Controller software is a powerful
software engine ideal for high-density client deployments requiring low
latency and high uptime performance.

Features

Powerful Hardware

The UniFi AC SHD AP features the latest in Wi-Fi 802.11ac Wave 2 MUMIMO technology combined with dedicated security and Bluetooth radios.

Intuitive UniFi Controller Software

The system integrator can leverage the controller to easily configure and administer an enterprise Wi-Fi network.

Expandable

The system integrator can start with one (or upgrade to a multipack)
and expand to thousands while maintaining a single unified management
system.

Save Money and Save Time

UniFi comes bundled with a software controller that can be deployed on
an on-site PC, Mac, or Linux machine; in a private cloud; or using a
public cloud service.

Hardware Overview

Deploy the UniFi AC SHD AP in high-density environments requiring
maximum wireless performance. The UniFi AC SHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+
compatibility. Available in single- and fivepacks.

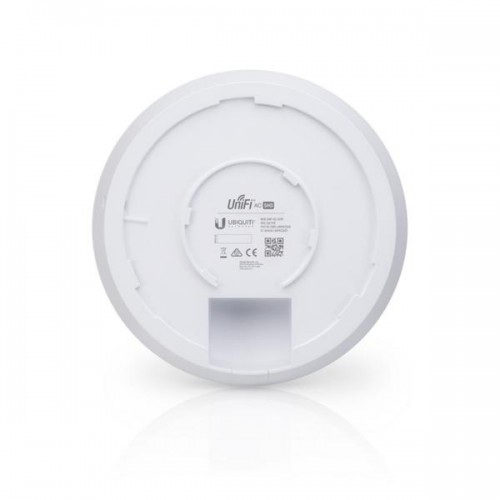

Easy Mounting

Its sleek design seamlessly integrates into any environment (all
accessories included) and is compatible with existing UAP-AC-PRO mounts.

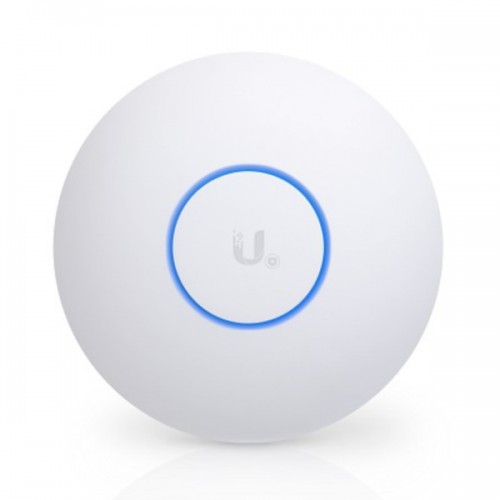

LED

The unique LED provisioning ring provides administrator location tracking and alerts for each device.

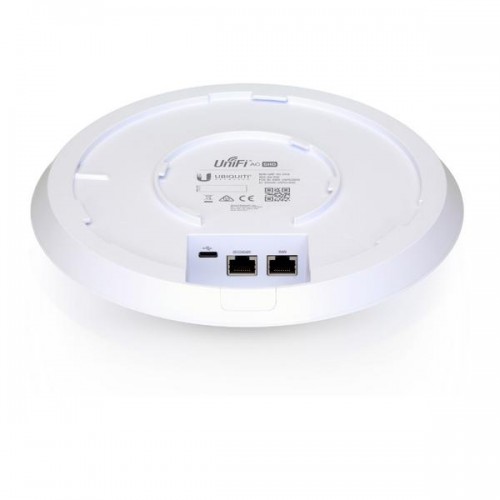

Dual Gigabit Ethernet

The UniFi AC SHD AP offers a secondary port available for bridging.

Superior Processing Power

The UniFi AC SHD AP is capable of complex operations (guest control,
filtering, and other resource-intensive tasks) that may slow down a
lesser-equipped AP.

Power over Ethernet (PoE) Standard

The UniFi AC SHD AP is compatible with an 802.3at PoE+ compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold
separately).

UniFi PoE Switch

Available in 8*, 16, 24, and 48port versions with multiple power output options, the UniFi PoE Switch conveniently offers autosensing IEEE
802.3af PoE/802.3at PoE+ and configurable 24V passive PoE.

*The US-8 and US-8-60W do not support 802.3at PoE+.

• Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
• Weight: 700 g (1.54 lb)
  • With mounting kits: 830 g (1.83 lb)
• Networking interface: (2) 10/100/1000 Ethernet ports
• Buttons: Reset
• Power method: 802.3at PoE+
• Supported voltage range: 44 to 57 V DC
• Power supply: UniFi Switch (PoE)
• Power save: Supported
• Maximum power consumption: 20 W
• Radios: 2.4 GHz, 5 GHz, security
• TX Power:
  • 2.4 GHz: 6-25 dBm
  • 5 GHz: 6-25 dBm
• Antennas:
  • 2.4 GHz: (2) dual-port, dual-polarity antennas, 6 dBi each
  • 5 GHz: (2) dual-port, dual-polarity antennas, 8 dBi each
• Wi-Fi standards: 802.11 a/b/g/n/ac/ac-wave2
• Wireless security:
  • WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • 802.11w (PMF)
• BSSID: Up to 8 per radio
• Mounting: Wall/ceiling (kits included)
• Operating temperature: -10°C to 70°C (14°F to 158°F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
