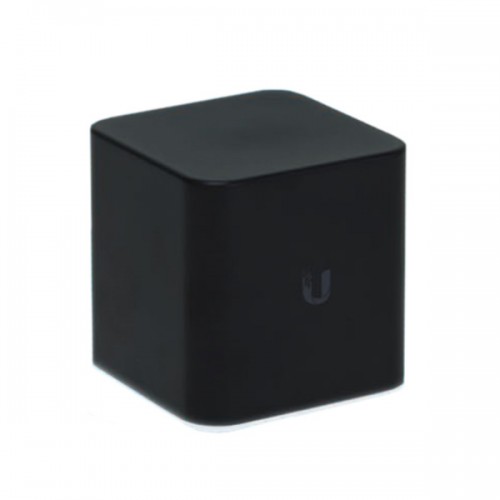

Ubiquiti Networks ACB-AC - airMAX(R) Home Wi-Fi Access Point with PoE In/Out

Ubiquiti Networks ACB-AC - airMAX(R) Home Wi-Fi Access Point with PoE In/Out

Ubiquiti Networks introduces the airCube(TM), a cost-effective wireless access point for use in your customer deployments.

Wireless Performance

Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:

• 2.4 GHz radio band: Speeds of up to 300 Mbps
• 5 GHz radio band: Speeds of up to 866.7 Mbps

Versatile Power Options

ACB-AC offers convenient PoE passthrough to power a 24 V airMAX CPEdevice, so you can use a single PoE adapter to power both devices.

To provide sufficient power for PoE passthrough, the airCube AC requires the included power adapter or 24 V, 1 A PoE input.

Intuitive Software

Management options feature a graphical user interface designed for streamlined setup and control. Available options include:

• U Mobile App: Supports quick setup and status information.
• Web UI: Enables a standalone utility for basic configuration.
• UNMS: Provides advanced remote control of Ubiquiti(R) devices.

• Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51Inch)
• Weight: 280 g (9.88 oz)
• Power supply: 24 V DC
• Power method: 24 V DC, 0.83 A or PoE 24 V In on LAN port 1
• Supported power voltage: 22-26 V
• Max. power consumption: 8.5 W
• PoE Out: Controllable 24 V PoE Out (+4, 5; -7, 8) on WAN port
• Management interface: Wi-Fi / Ethernet

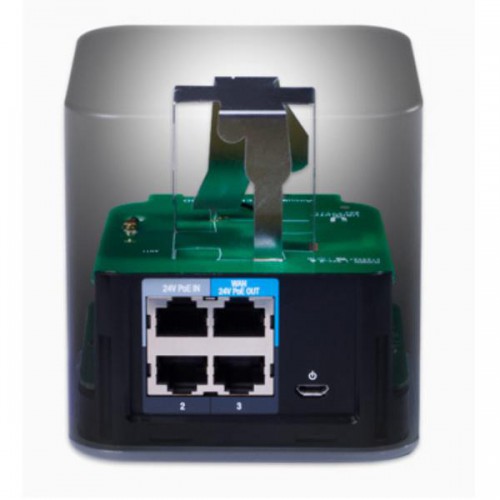

• Networking interface: (4) Gigabit Ethernet ports
• LED: Status
• Max. TX power: 22 dBm
• Antenna gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5 dBi
• Max. speeds
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 866.7 Mbps
• Enclosure characteristics: Black plastic
• ESD/EMP protection: 24 kV contact / air
• Operating temperature: -10°C to 50°C (-14°F to 122°F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
