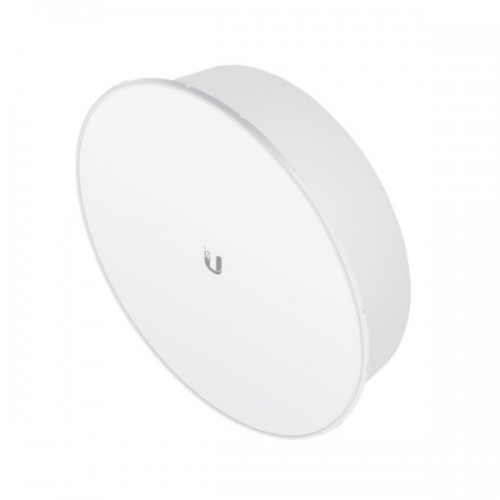

Ubiquiti PBE-5AC-ISO-Gen2 - 5 GHz High Performance airMAX(R) ac Bridge

Ubiquiti PBE-5AC-ISO-Gen2 - 5 GHz High Performance airMAX(R) ac Bridge

Ubiquiti Networks launches the latest generation of airMAX(R) CPE (Customer Premises Equipment), the PowerBeam(R) 5AC Gen 2, with dedicated Wi-Fi management.

The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquitis InnerFeed(R) technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 5AC Gen 2 is versatile and costeffective to deploy.

PBE-5AC-ISO-Gen2

The PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements.

The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments.

• Dimensions: 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
• Weight: (mount included): 3.22 kg (7.10 lbs)
• Power supply: 24 V, 0.5 A Gigabit PoE adapter (included)
• Max. power consumption: 8.5 W
• Power method: Passive PoE (pairs 4, 5+; 7, 8 return)
• Supported voltage range: 20 to 26 V DC
• Gain: 25 dBi
• Networking interface: (1) 10/100/1000 Ethernet port
• Processor specs: MIPS 74Kc
• Memory: 64 MB
• LEDs: Power, Ethernet, (4) signal strength
• Channel sizes:
• PtP Mode: 10/20/30/40/50/60/80 MHz
• PtMP Mode: 10/20/30/40 MHz
• Enclosure characteristics:
• Antenna Feed: Outdoor UV stabilized plastic
• Dish Reflector: Powder-coated SPCC
• Mounting: Pole-mounting kit (included)
• Wind loading: 559 N (at) 200 km/h (125.7 lbf (at) 125 mph)
• Wind survivability: 200 km/h (125 mph)
• ESD/EMP protection
• Air: +/- 24 kV
• Contact: +/- 24 kV
• Operating temperature: -40°C to 70°C (-40°F to 158°F)
• Operating humidity: 5 - 95% non condensing
• RoHS compliance: Yes
• Salt fog test: IEC 68-2-11 (ASTM B117), equivalent: MIL-STD-810 G method 509.5
• Vibration test: IEC 68-2-6
• Temperature shock test: IEC 68-2-14
• UV test: IEC 68-2-5 at 40°C (104°F), equivalent: ETS 300 019-1-4
• Wind-driven rain test: ETS 300 019-1-4, equivalent: MIL-STD-810 G method 506.5
• Certifications: CE, FCC, IC
