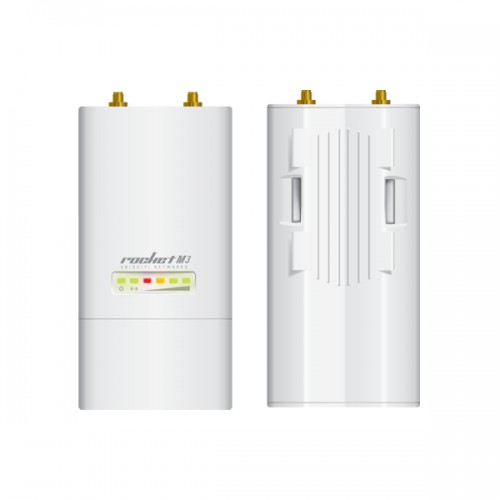

Ubiquiti RocketM3 - 3 GHz Hi-Power 2x2 MIMO AirMax TDMA BaseStation

Ubiquiti Networks RocketM3 - 3 GHz Hi-Power 2x2 MIMO AirMax TDMA BaseStation

- Please note: In some countries, the use of this product is restricted or not allowed. Please check with the appropriate authority in your country. -

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+ km) and breakthrough speed (150+ Mbps real TCP/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

Rocket M Seamlessly Integrates with AirMax BaseStation and Rocket Antennas

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

AirOS V

Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Compatbile Antennas

• AirMax Sector 3G-18-120
• Rocket Dish 3G-26

• Processor specs: Atheros MIPS 24KC, 400 MHz
• Memory information: 64 MB SDRAM, 8 MB Flash
• Frequency: 3400 - 3700 MHz
• Networking interface: 1x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet interface
• Enclosure size: 16 cm length x 8 cm width x 3 cm height
• Weight: 0.5 kg
• RF connector: 2x RP-SMA (waterproof)
• Enclosure characteristics: Outdoor UV stabalized plastic
• Mounting kit: Pole mounting kit included
• Max. power consumption: 6.5 Watts
• Power supply: 24 V, 1 A PoE supply included
• Power method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• Operating temperature: -30°C to 75°C
• Operating humidity: 5 to 95 % condensing
• Shock and vibration ETSI300-019-1.4
