Ubiquiti Networks U-Installer - airMAX(R) CPE Installation Tool

Ubiquiti Networks U-Installer - airMAX(R) CPE Installation Tool

The durable Ubiquiti(R) Installer should be in every WISP installers
toolbox. The U-Installer makes installing airMAX(R) Customer Premise
Equipment (CPE) devices easier and more efficient. Position, provision,
and configure the CPE device at the point of installation using a tablet or smartphone.

Mobile Device-Friendly Installation

The U-Installer provides Wi-Fi connectivity to the CPE management
interface during installation, so provisioning and final adjustments can be made with a tablet or smartphone.

The U-Installer also provides 24 V PoE to the CPE, making installation
easier. The Wi-Fi functionality allows the U-Installer to be used with
devices that dont support 24 V PoE.

Accessing airOS via Wi-Fi

The U-Installer gives you the ability to configure your CPE device
through its Wi-Fi management radio and the U Mobile app. Broadcasting
its own SSID, the U-Installer allows mobile devices to connect
wirelessly to the same network as your CPE device. This simplifies both
device discovery and configuration.

The U Mobile app provides instant accessibility to the airOS
configuration interface and can be downloaded from the App Store (iOS)
or Google Play(TM) (Android). U Mobile allows you to set up, configure, and manage your CPE devices.

Hardware Overview

The U-Installers hardware features make configuring and provisioning your CPE fast and efficient.

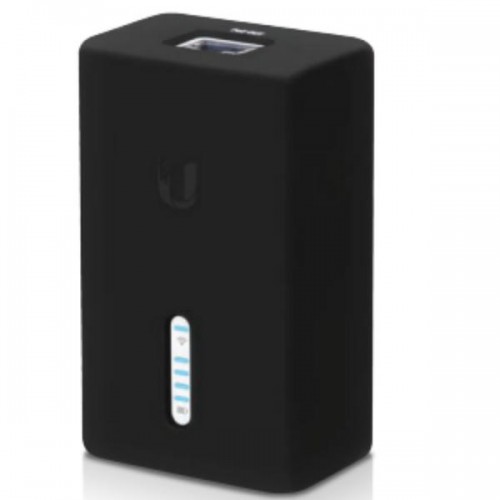

Powers CPE via PoE

The U-Installers PoE out port conveniently supplies 24 V passive PoE to the CPE device.

Durable Rubber Casing

The removable rubber casing protects the U-Installer during installation.

External PoE Reset

Quickly reset the device connected to the U-Installer to factory defaults.

Rubber Case Clip

Use the clip on the back of the rubber casing to secure the U-Installer to a belt or pocket.

Built-in Battery

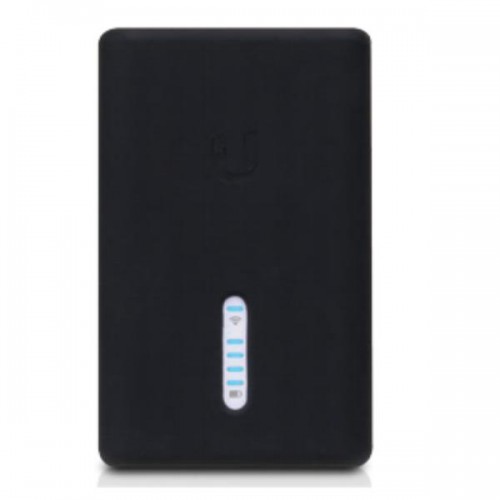

The internal battery provides up to one hour of runtime. Check the four
blue LEDs on your U-Installer to verify the internal batterys charge
level.

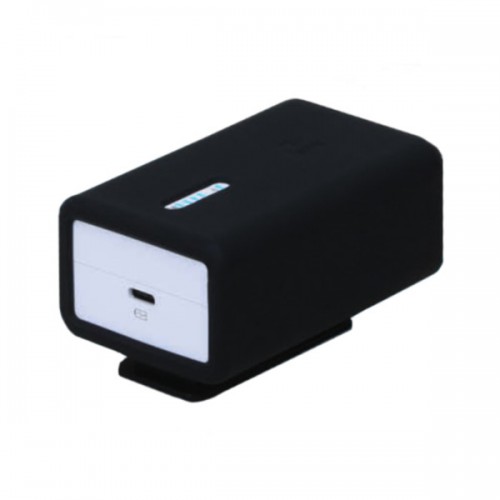

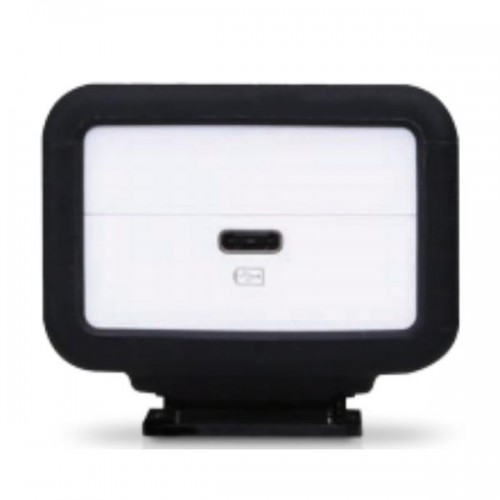

Rechargeable via USB

With a USB Type-C connector, the U-Installer can be charged on the go using a mobile battery pack, simplifying installation.

• Dimensions: 93 x 57 x 38.2 mm (3.66 x 2.24 x 1.50")
• Processor: Atheros MIPS 74KC, 560 MHz
• Memory: 64 MB DDR2
• Buttons:
  • (1) reset U-Installer
  • (1) reset external airMAX device
  • (1) power on/off
• Networking interfaces:
  • (1) 10/100 Ethernet port
  • Wi-Fi
• Ports: (1) USB-C port
• Passive PoE output:
  • Voltage: 24 V
  • Max. power: 12 W
• Management interface: Wi-Fi
• Wi-Fi frequency: 2.4 GHz
• Wi-Fi standards: 802.11b/g/n
• Power method:
  • Internal battery
  • USB mobile battery pack: 5 V, 3 A (not included)
• Power supply: 5 V, 3 A
• Supported voltage range: 4.95 - 5.05 V
• Max. power consumption
  • U-Installer: 3 W
  • U-Installer with CPE: 15 W
• LEDs
  • (1) Wi-Fi
  • (4) battery
• ESD/EMP protection: 24 kV contact/air
• Operating temperature: 0°C to 35°C (32°F to 95°F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
