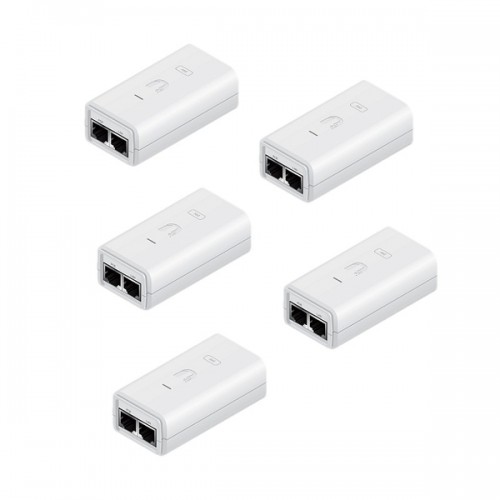

Ubiquiti POE-24-12W-5P - 24 V, 12 W Gigabit PoE Injector, 5-Pack

Ubiquiti POE-24-12W-5P - 24 V, 12 W Gigabit PoE Injector, 5-Pack

PLEASE NOTE: THIS IS A 5-PACK

Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices, including: airFiber(R), airMAX(R), EdgeMAX(R), mFi(R),
UniFi(R) AP, UniFi Video / airVision(R).

Device Protection

PoE adapters are highly reliable, and when used with the Ubiquiti TOUGHCable(TM), they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Convenient Wall-Mounting

The 24 V, 0.5 A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

Seamless airGateway(TM) Compatibility

The 15 V, 0.8 A and 24 V, 0.5 A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway(TM) to bridge airMAX(R) connections to Wi-Fi at customer locations.

PLEASE NOTE: THIS IS A 5-PACK

• Gigabit LAN port: Yes
• Output voltage: 24 V DC at 0.5 A
• Input voltage: 90-260 V AC at 47-63 Hz
• Input current: 0.3 A at 120 V AC, 0.2 A at 230 V AC
• Inrush current: <15 A peak at 120 V AC, <30 A peak
• Efficiency: 70+ %
• Output ripple: 1% max.
• Switching frequency: 200 kHz
• Line regulation: +/-0.5%
• Load regulation: +/-1%
• Operating temperature: -10°C to +60°C
• Storage temperature: -20°C to +85°C
• Size (L x W x H): 85 x 55 x 33 mm
• Weight: 4 oz
• AC connector: IEC-320 C6
• Data IN/PoE: RJ45 shielded socket
• 80% current indicator: Power LED will change color
• Surge protection: Common mode
• Clamping protection: 11 V data, 77.5 V power
• Max. surge discharge: 1200 A (8/20 uS) power
• Peak pulse current: 36 A (10/1000 uS data)
• Shunt capacitance: <5 pF data
• Response time: <1 nS
• Compliance: UL, EN55022 (CISPR22) class B, meets CE
• NO remote reset button
