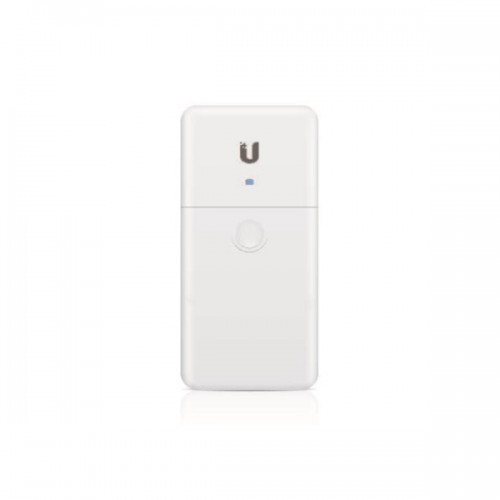

Ubiquiti Networks N-SW - Outdoor 4-Port PoE Passthrough NanoSwitch

Ubiquiti Networks N-SW - Outdoor 4-Port PoE Passthrough NanoSwitch

Please note: This device is not an "industrial" version of the N-SW. It only supports passive PoE at 24 V and doesn't provide any protection against higher voltages!

Introducing the Ubiquiti Networks(R) NanoSwitch(TM), an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the NanoSwitch supports up to 4 Gbps.

Hardware Features

Featuring a durable, weatherproof form factor, the NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.

Power over Ethernet

The NanoSwitch has four PoE ports:

• 1x PoE In: 24 V, 4-Pair
• 3x PoE Passthrough: 24 V, 2-Pair

• Dimensions: 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")
• Weight: 271 g (9.6 oz)
• Enclosure Characteristics: White Polycarbonate
• Total NonBlocking Line Rate: 4 Gbps
• Typical Power Consumption: 1.5 W
• Passive PoE Max. Wattage per Port: 24 V, 2Pair, 1 A per Port (24 W)
• Total Passive PoE Max. Wattage: 24 V, 2Pair, 1.5 A for 3 Ports (36 W)
• Power Method: Passive 24 V, 4Pair PoE In
• Passive PoE Voltage Range: 21.6 26.4 V
• LEDs: Speed/Link/Activity (All Ports)
• Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports
• PoE Interfaces: Passive 24 V PoE In
• ESD/EMP Protection: Air: +/- 24 kV, Contact: +/- 24 kV
• Operating Temperature: 30 to 70 °C (22 to 158 °F)
• Operating Humidity: 5 to 95 % Noncondensing
• Shock and Vibration: ETSI3000191.4 Standard
• Certifications: CE, FCC, IC
